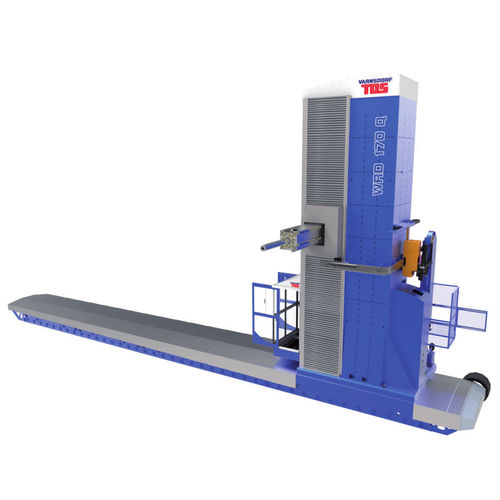

Floor boring mill WRD 170 (Q)
CNChorizontalhigh-productivity

floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Other characteristics
high-productivity, 4-axis, high-precision, traveling-column, rotating table, high-performance, heavy-duty, floor, for large workpieces, mobile, high-power, for automatic tool changers
X travel

Min.: 5,000 mm (197 in)

Max.: 29,000 mm (1,142 in)

Y travel

Min.: 3,000 mm (118 in)

Max.: 6,000 mm (236 in)

Z travel

1,500 mm (59 in)

Power

81 kW (110.12931 hp)

W travel (spindle)

1,000 mm (39 in)

Spindle diameter

Min.: 160 mm (6 in)

Max.: 200 mm (8 in)

Description

- the biggest type of floor type horizontal boring machines manufactured by TOS VARNSDORF a.s. - intented for precision and high-efficient coordinate boring, drilling, milling and thread-cutting particularly in the case of large-scale, heavy and structurally difficult work-pieces made of cast iron, cast steel and steel - according to process needs, the machine can be extended with a clamping field consisting of clamping plates or with one or more additional tables - machines can be extended with a wide selection of technological accessories that significantly widen the machine technological utility value - either SINUMERIK 840D SL, HEIDENHAIN TNC 640 or FANUC 31i control system can be selected for controlling the machine - on the customer’s wish the machine can be supplied also in design with spindle diameter of 160 mm Basic options of the machine - WRD 170 - the basic model - WRD 170 Q - the Automatic Tool Changer (ATC) equipped model
