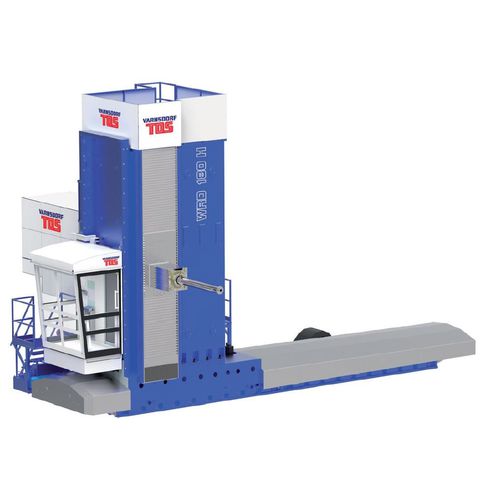

Floor boring mill WRD 180 H
CNCconventionalhorizontal

floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
Add to favorites
Compare this product


Characteristics

Control type
CNC, conventional
Spindle orientation
horizontal
Other characteristics
hydrostatic, 4-axis, high-precision, traveling-column, rotating table, high-productivity, heavy-duty, floor, for large workpieces, high-power, high-rigidity
X travel

Min.: 5,000 mm (197 in)

Max.: 29,000 mm (1,142 in)

Y travel

Min.: 3,000 mm (118 in)

Max.: 6,000 mm (236 in)

Z travel

1,600 mm (63 in)

Power

Min.: 74 kW (100.61197 hp)

Max.: 101 kW (137.32174 hp)

W travel (spindle)

1,200 mm (47 in)

Spindle diameter

Min.: 160 mm (6 in)

Max.: 200 mm (8 in)

Description

+ WRD 180 H hydrostatic floor-type horizontal boring and milling machines are designed to serve for precise coordinate drilling, boring, milling, and thread cutting. + They are particularly suitable for the machining of box-, plate- and complex-shape work pieces made of cast iron, cast steel, steel or other materials machinable with cutting tools, and for large and very large size and weighty components. + The machines are well usable for batch production and complex process applications. + Machine are offered with three type of working spindel diameter (160, 180 and 200) + The machines are continuously controlled in four axes (X - base cross travelling, Y - headstock vertical adjustment, Z - sliding block longitudinal travel and W - working spindle longitudinal travel). + They can be extended with a wide selection of technological accessories that significantly widen the machine technological utility value. + HEIDENHAIN TNC 640, Sinumerik 840 D-SL or FANUC 31i control system can be selected for controlling the machine. Basic options of the machine + the basic model + the Automatic Tool Changer (ATC) equipped model
