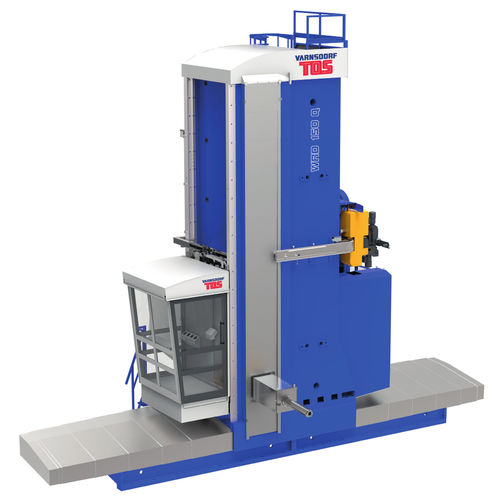

Floor boring mill WRD 130/150 (Q)
CNChorizontaltraveling-column

floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Other characteristics
traveling-column, 4-axis, high-precision, rotating table, for automatic tool changers, high-productivity, heavy-duty, floor, for large workpieces, mobile, high-power, high-rigidity
X travel

Max.: 27,000 mm (1,063 in)

Min.: 5,000 mm (197 in)

Y travel

Max.: 6,000 mm (236 in)

Min.: 2,500 mm (98 in)

Z travel

1,200 mm (47 in)

Power

Max.: 58 kW (78.85803 hp)

Min.: 41 kW (55.74447 hp)

W travel (spindle)

Max.: 800 mm (31 in)

Min.: 700 mm (28 in)

Spindle diameter

Max.: 160 mm (6 in)

Min.: 130 mm (5 in)

Description

- twin-type of machines of the same concept and frame, but different main motor outputs, different headstocks and spindle speeds - intented for precision and high-efficient coordinate boring, drilling, milling and thread-cutting particularly in the case of large-scale, heavy and structurally difficult work-pieces made of cast iron, cast steel and steel - according to process needs, the machine can be extended with a clamping field consisting of clamping plates or with one or more additional tables - machines can be extended with a wide selection of technological accessories that significantly widen the machine technological utility value - either SINUMERIK 840D SL, HEIDENHAIN TNC 640 or FANUC 31i control system can be selected for controlling the machine - on the customer’s wish the WRD 150 type can be supplied also in design with spindle diameter of 160 mm Basic options of the machine - WRD 130 - the basic model - WRD 130 Q - the Automatic Tool Changer (ATC) equipped model - WRD 150 - the basic model - WRD 150 Q - the Automatic Tool Changer (ATC) equipped model
