Tensile testing machine 259

creepautomaticmaterial

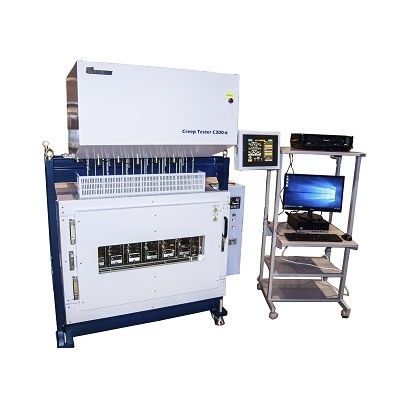

The Creep Tester performs tensile creep test by applying a constant tensile load to the specimens in a controlled temperature chamber, subjecting the materials to a high level of stress under load and temperature over time. With high precision sensors to continuously monitor the materials, it is able to measure minute elongation for calculation of strain in the materials. These creep tests are important to the development and characterization of new materials that are used in materials under constant load. ISO 899-1 - Plastics — Determination of creep behaviour — Part 1: Tensile creep ASTM D2990 - Standard Test Methods for Tensile, Compressive, and Flexural Creep and Creep-Rupture of Plastics Load - • 1kN max. (C100 series) • 2kN max. (C200 series) • 3kN max. (C300 series) • 10kN max. (C1000 series) Number of specimens - • 3 stations: C100-3, C200-3, C300-3, C10003 • 5 stations: C100-5, C200-5, C300-5 • 6 stations: C100-6, C200-6, C300-6, C10006 Elongation - • C100 series: 50mm • C200 series: 30mm • C300 series: 25mm • C1000 series: 50mm Temperature range - 200°C max. Power supply - Three-phase, AC200V, 50/60Hz, 10.4kVA (or specify) Dimensions - W1470 × D1730 × H1860mm (3 stations model) Weight (approx.) - 800kg (3 stations model)
