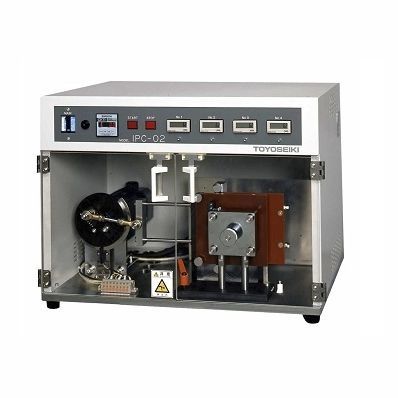

Bending tester 674benchtop
Add to favorites
Compare this product
Characteristics
- Test type
- bending
- Configuration
- benchtop
Description
The IPC (FPC) Bending Tester performs bending test of specimen such as a FFC, FPC etc. and measures the number of times of bending until it breaks or the set resistance becomes abnormal, and evaluates the durability.
JIS C 5016 - Test methods for flexible printed wiring boards
Dimensions of specimen - • Max. width: 25mm
• Thickness: 0.05 to 0.5mm
• Length: 50 to 300mm
Number of specimen - Max. 4 pcs.
Driving direction - Vertical direction
Radius of curvature - 2.5 to 7.5mm (∅5 to ∅15, 1mm steps)
Bending speed - 20 to 200cpm (10 cpm steps)
Stroke - 25 to 75mm (5mm steps)
Counting - Max. 8 digits
Power supply - Single-phase, AC100V, 50/60Hz, 1kVA (or specify)
Dimensions - W600 × D400 × H455mm
Weight - Approx. 30kg
