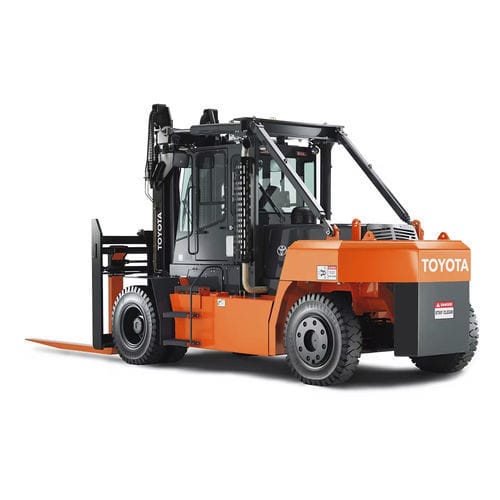

Heavy-duty forklift THD series
dieselride-onindustrial

Heavy-duty forklift - THD series - Toyota Industrial Equipment - diesel / ride-on / industrial
Heavy-duty forklift - THD series - Toyota Industrial Equipment - diesel / ride-on / industrial
Heavy-duty forklift - THD series - Toyota Industrial Equipment - diesel / ride-on / industrial - image - 2
Heavy-duty forklift - THD series - Toyota Industrial Equipment - diesel / ride-on / industrial - image - 3
Heavy-duty forklift - THD series - Toyota Industrial Equipment - diesel / ride-on / industrial - image - 4
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, industrial
Other characteristics
4-wheel, counterbalanced, pneumatic tire, for heavy loads, heavy-duty
Carrying capacity

Max.: 125,000 lb
(56,699 kg)

Min.: 30,000 lb
(13,607.8 kg)

Lifting height

441 in

Overall width

103 in, 120 in, 132 in, 165 in, 174 in

Load center distance

Max.: 59 in

Min.: 36.5 in

Weight without load

Max.: 159,400 lb
(72,302.6 kg)

Min.: 45,297 lb
(20,546.4 kg)

Axle loading with maximum load rear

Max.: 22,397 lb
(10,159.1 kg)

Min.: 4,995 lb
(2,265.7 kg)

Axle loading without load front

Max.: 99,074 lb
(44,939.2 kg)

Min.: 25,078 lb
(11,375.2 kg)

Axle loading without load rear

Max.: 73,730 lb
(33,443.4 kg)

Min.: 19,796 lb
(8,979.3 kg)

Track width front

75 in, 86 in

Track width rear

75 in, 79 in, 92 in

Height of mast when lowered

Max.: 207 in

Min.: 142 in

Overall height with mast raised

220 in, 229 in, 234 in, 277 in

Height to top of overhead guard

131.5 in

Ground clearance under mast with load

5.4 in, 9.4 in, 10 in, 13.8 in, 15 in

Ground clearance at center of wheelbase with load

Max.: 19.7 in

Min.: 11.8 in

Turning circle radius

Max.: 382.5 in

Min.: 166.6 in

Description

Toyota's High-Capacity IC Pneumatic Forklift is the largest forklift in Toyota's product line. With a lifting capacity to handle heavy loads up to 125,000 lbs., this large, rugged diesel forklift can handle almost any heavy load. Commonly found loading and unloading large shipping containers or on the construction site, the High-Capacity IC Pneumatic Forklift provides lifting solutions for extremely heavy industrial applications. Enclosed Operator Cabin Operator Presence Sensing System (OPSS) Peformance High-Capacity IC Pneumatic Forklift for Extra Large Jobs The High-Capacity IC Pneumatic Forklift is Toyota's heavy-duty solution. Capable of lifting more than 62 tons (125,000 pounds), the High-Capacity IC Pneumatic Forklift often moves material on construction sites and loads full trailers onto large ships. This lift includes a vehicle management system with on-board diagnostics that shares useful information and timely alerts on a 7-inch colour multifunction touchscreen. Standard fingertip controls provide smooth material handling and variable speed control of all functions. A low-profile counterweight makes the THD easy to maneuver and puts you in control with confidence. Safety features of the High-Capacity IC Pneumatic Forklift include an Operator Presence Detection System (OPSS), which is integrated under the forklift seat and detects the operator's presence while in operation. This forklift also includes a neutral safety switch, an integrated protective canopy and an electric horn. Wet disc brakes also come standard on this forklift that seals debris, keeps the brakes running cool, and reduces wear and tear for increased uptime and longer life.
