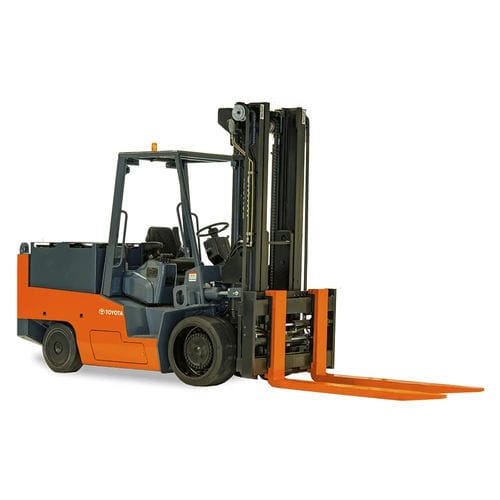

Heavy-duty forklift THDE serieselectricride-onindoor
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- for the food industry, indoor
- Other characteristics
- counterbalanced, heavy-duty, cushion tire
- Carrying capacity
Min.: 15,000 lb
(6,803.9 kg)Max.: 40,000 lb
(18,143.7 kg)- Lifting height
Min.: 69 in
Max.: 327 in
- Overall width
Min.: 63 in
Max.: 72.4 in
- Load center distance
Min.: 24.1 in
Max.: 34.7 in
- Weight without load
Min.: 23,600 lb
(10,704.8 kg)Max.: 55,900 lb
(25,355.8 kg)- Axle loading with maximum load front
Min.: 36,190 lb
(16,415.5 kg)Max.: 88,850 lb
(40,301.7 kg)- Axle loading with maximum load rear
Min.: 2,410 lb
(1,093.2 kg)Max.: 7,050 lb
(3,197.8 kg)- Axle loading without load front
Min.: 11,540 lb
(5,234.5 kg)Max.: 20,700 lb
(9,389.4 kg)- Axle loading without load rear
Min.: 12,060 lb
(5,470.3 kg)Max.: 35,200 lb
(15,966.5 kg)- Track width front
46.3 in, 48.3 in, 52.3 in
- Track width rear
47.8 in, 50.3 in, 52.3 in
- Height of mast when lowered
98 in, 112.8 in, 120 in
- Overall height with mast raised
156.1 in, 162.8 in, 166 in, 172.4 in
- Height to top of overhead guard
93.6 in, 102.6 in
- Length to fork face
Min.: 125.9 in
Max.: 155.6 in
- Ground clearance under mast with load
4.3 in
- Ground clearance at center of wheelbase with load
4.8 mm
(0.2 in)- Turning circle radius
Min.: 109.9 in
Max.: 138.9 in
- Travel speed
Min.: 3.7 mph
(6 km/h)Max.: 6.5 mph
(10.5 km/h)- Lifting speed
Min.: 81 mm/s
Max.: 264 mm/s
- Lowering speed
Min.: 91 mm/s
Max.: 305 mm/s
- Rated drawbar pull
Min.: 21.9 kgf
Max.: 25.4 kgf
- Gradeability
Min.: 5.1 %
Max.: 25.5 %
- Rated output
42.5 ch
(42.5 hp)- Maximum operating pressure
2,250 psi
- Oil flow
78 l/min
(20.6 us gal/min)
Description
The Toyota High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties.
AC Drive and Pump Motors
72- or 80-Volt Electrical System
Performance
Large and In Charge
Think real power needs an IC engine? Think again. The impressive, dependable power of the Toyota High-Capacity Electric Cushion Forklift is your perfect answer for heavy lifting challenges. The biggest tasks in automotive, forging, and paper industries are no match for the High-Capacity Electric Cushion.
360 Degrees of Quality, Durability, & Value
Toyota’s High-Capacity Electric Cushion Forklift comes with your choice of a 72 or 80-Volt battery and an easily accessible drive motor. This product comes with a load-sensing hydraulic system for optimal performance, transistor control monitors, heavy duty planetary drive axle, and a drum-type brake system.
