Heavy-duty forklift THDC series
LPGride-onindoor

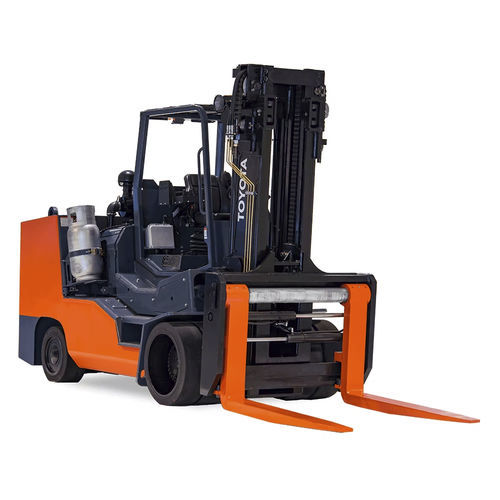

Heavy-duty forklift - THDC series - Toyota Industrial Equipment - LPG / ride-on / indoor
Heavy-duty forklift - THDC series - Toyota Industrial Equipment - LPG / ride-on / indoor
Heavy-duty forklift - THDC series - Toyota Industrial Equipment - LPG / ride-on / indoor - image - 2
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
for the automotive industry, indoor
Other characteristics
counterbalanced, heavy-duty, for heavy loads, cushion tire
Carrying capacity

Min.: 25,000 lb
(11,339.8 kg)

Max.: 100,000 lb
(45,359.2 kg)

Lifting height

Min.: 100 in

Max.: 275 in

Overall width

Min.: 62 in

Max.: 85.5 in

Load center distance

24 in, 30.7 in, 34.7 in, 44.3 in

Axle loading with maximum load rear

Min.: 3,800 lb
(1,723.7 kg)

Max.: 10,510 lb
(4,767.3 kg)

Axle loading without load front

Min.: 14,380 lb
(6,522.7 kg)

Max.: 25,020 lb
(11,348.9 kg)

Axle loading without load rear

Min.: 19,010 lb
(8,622.8 kg)

Max.: 52,540 lb
(23,831.7 kg)

Track width front

46 in, 48.6 in, 53.5 in

Track width rear

50.3 in, 52.3 in, 59.9 in

Height of mast when lowered

112.8 in, 118 in, 120 in

Free lift

55 in

Overall height with mast raised

162.8 in, 172.4 in, 173 in

Height to top of overhead guard

104.9 in, 118.9 in

Length to fork face

Min.: 152.7 in

Max.: 196.6 in

Ground clearance under mast with load

3.8 in, 4.8 in, 8.6 in

Ground clearance at center of wheelbase with load

4.3 in, 5.3 in, 9.1 in

Turning circle radius

Min.: 136.5 in

Max.: 173.3 in

Travel speed

9.7 mph, 10.3 mph
(15.6 km/h, 16.6 km/h)

Lifting speed

Min.: 102 mm/s

Max.: 330 mm/s

Lowering speed

Min.: 61 mm/s

Max.: 122 mm/s

Rated drawbar pull

Min.: 30 kgf

Max.: 11,600 kgf

Gradeability

Min.: 19 %

Max.: 73.7 %

Rated output

135 ch
(135 hp)

Maximum operating pressure

2,250 psi, 2,500 psi

Description

Toyota knows that sometimes hauling high-capacity loads is an inside job. The Toyota High-Capacity Large IC Cushion Forklift is an indoor mammoth of a machine. Ideal for automotive environments and for moving steel inside manufacturing facilities, it gives you the ability to lift up to 80,000 lbs. of the toughest loads around. And with one of the leading engines in its class, the Toyota High-Capacity Large Cushion Forklift is as dependable as it is strong. High-Capacity Cooling System 5.7 L V8 Engine Performance World-Class Weight Lifter The High-Capacity Large IC Cushion Forklift is king when it comes to heavy lifting indoor tasks. Whether steel needs moved or engines need shipping, the High-Capacity Large IC Cushion Forklift is ready to muscle its way through your daily task list. This forklift has the power of a V8 engine and Dana Transmission with three forward and reverse speeds, along with engine diagnostics and support systems to back it all up. 360 Degrees of Quality, Durability, & Value Toyota’s High-Capacity Large IC Cushion Forklift comes with a V8 LP engine and heavy-duty planetary drive axle. This product comes with a digital instrument display that gives fuel, engine, transmission, battery, service, and temperature information. The High-Capacity Large IC Cushion Forklift has a two-stage wide visible mast to provide unobstructed views so you can get work done.
