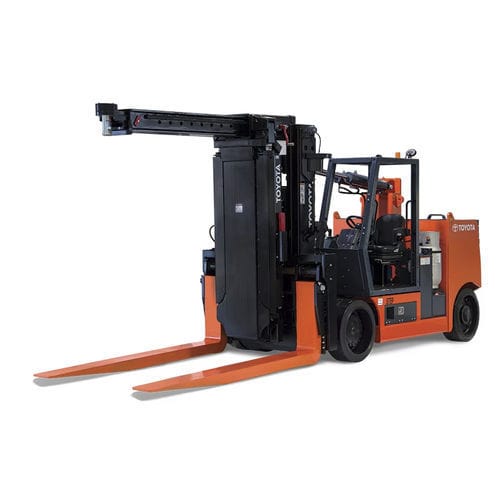

Heavy-duty forklift THDA series
combustion engineride-onindustrial

Heavy-duty forklift - THDA series - Toyota Industrial Equipment - combustion engine / ride-on / industrial
Heavy-duty forklift - THDA series - Toyota Industrial Equipment - combustion engine / ride-on / industrial
Heavy-duty forklift - THDA series - Toyota Industrial Equipment - combustion engine / ride-on / industrial - image - 2
Heavy-duty forklift - THDA series - Toyota Industrial Equipment - combustion engine / ride-on / industrial - image - 3
Add to favorites
Compare this product

Characteristics

Motor type
combustion engine
Operator
ride-on
Applications
industrial
Other characteristics
4-wheel, counterbalanced, heavy-duty
Carrying capacity

Min.: 25,000 lb
(11,339.8 kg)

Max.: 80,000 lb
(36,287.4 kg)

Lifting height

Min.: 95 in

Max.: 165 in

Overall width

Min.: 62 in

Max.: 84 in

Load center distance

26.4 in, 28.9 in, 37.4 in

Weight without load

33,910 lb, 58,860 lb, 83,010 lb
(15,381.3 kg, 26,698.4 kg, 37,652.7 kg)

Axle loading with maximum load rear

9,272 lb, 16,260 lb
(4,205.7 kg, 7,375.4 kg)

Axle loading without load front

12,280 lb, 27,560 lb
(5,570.1 kg, 12,501 kg)

Axle loading without load rear

21,630 lb, 32,000 lb, 45,771 lb
(9,811.2 kg, 14,515 kg, 20,761.4 kg)

Track width front

48.6 in, 52 in, 62 in

Track width rear

47.9 in, 60 in, 72 in

Height of mast when lowered

95 in, 107 in, 118 in

Free lift

22 in, 31 in, 37 in

Overall height with mast raised

165 in, 175.8 in, 182.8 in

Height to top of overhead guard

Min.: 86.8 in

Max.: 98.1 in

Length to fork face

Min.: 129.4 in

Max.: 241.1 in

Ground clearance under mast with load

3.8 in, 4 in, 4.5 in

Ground clearance at center of wheelbase with load

4.8 in, 6.5 in, 9.5 in

Turning circle radius

Min.: 114 in

Max.: 222.9 in

Rated output

63.2 ch, 81 ch, 110 ch
(63.2 hp, 81 hp, 110 hp)

Maximum operating pressure

2,500 psi

Description

The Toyota High-Capacity Forklift with Adjustable Wheelbase is a master of flexibility. This sit down counterbalanced forklift allows operators to make adjustments to varying load weights with an extendable counterweight that includes removable slabs. Need to move a big, awkward item? The multi-stage telescopic boom is able to safely and efficiently move large equipment such as industrial machinery or massive engines. Multi-Stage Telescoping Boom Performance Forward-Thinking Flexibility A horizontally adjustable counterweight makes the High-Capacity Adjustable Wheelbase one of the most versatile forklifts in the industry. With just the push of a button, the counterweight can extend out hydraulically to dramatically improve the forklift’s maximum lifting capacity. Need to navigate through a tight spot? Press another button, and the counterweight can be retracted just as quickly and easily, providing optimum mobility for the job at hand. Throw in a maximum lifting capacity of up to 80,000 lbs., and you have the perfect combination of power and finesse to handle the most diverse and challenging tasks imaginable. Redefined Expectations The heart and soul of every IC forklift is its drivetrain. Toyota’s High-Capacity Adjustable Wheelbase models are designed to provide the performance you need and the ability to fine-tune it based on the specific needs of your operation.
