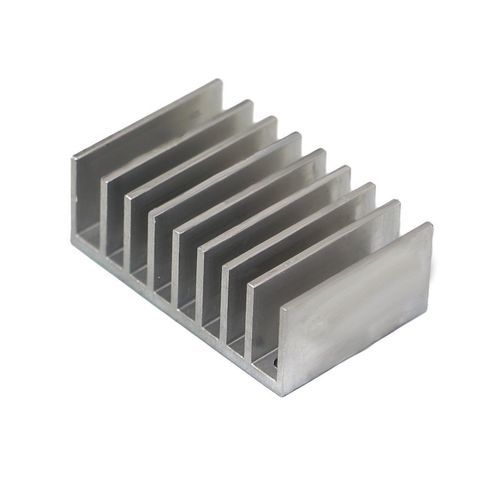

Anodized aluminum heat sink TPS30 / 75-PMDcompactfor LEDsfor electronics
Add to favorites
Compare this product
Characteristics
- Material
- anodized aluminum
- Options
- CNC milled and tapped, for electronics, compact, for LEDs
Description
Product description
Compact machined heatsink manufactured from AL6061 with anodised surface finish. Designed for component-level thermal management in confined assemblies where controlled dimensions and low mass are required.
Identification
Specifications
Applications and handling notes
Compact machined heatsink manufactured from AL6061 with anodised surface finish. Designed for component-level thermal management in confined assemblies where controlled dimensions and low mass are required.
Identification
- Article Number: HS1006
- Manufacturer Code: 507020102
- Manufacturer: TPS
- Model: TPS30 / 75-PMD
Specifications
- Height: 21 mm
- Length: 60 mm
- Width: 57.9 mm
- Material: AL6061
- Surface: Anodised
- Weight: 0.08 kg
Applications and handling notes
- Intended for thermal dissipation in electronic modules, power assemblies and LED systems.
- Verify mechanical fixation and thermal interface requirements prior to integration.
- Surface anodising improves corrosion resistance and electrical isolation; inspect compatibility with thermal interface materials.
