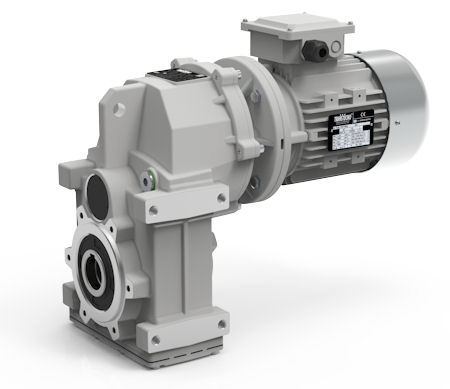

Spur gear reducer ATS series
parallel-shafthollow-shaft500 - 1000 Nm

Spur gear reducer - ATS series - Transtecno - parallel-shaft / hollow-shaft / 500 - 1000 Nm
Spur gear reducer - ATS series - Transtecno - parallel-shaft / hollow-shaft / 500 - 1000 Nm
Add to favorites
Compare this product

Characteristics

Type
spur
Shaft orientation
parallel-shaft
Shaft configuration
hollow-shaft
Torque
500 - 1000 Nm
Applications
for shaft
Rotational speed

Min.: 5 rpm
(31.4159 rad.min-1)

Max.: 240 rpm
(1,507.9645 rad.min-1)

Power

Min.: 0.17 kW
(0.23 hp)

Max.: 9.4 kW
(12.78 hp)

Description

The high degree of modularity is a design feature of ATS shaft mounted range. It is possible to set up the version required by using input and output kits. The main features of ATS range are: Die-cast aluminum housings and input flanges Permanent synthetic oil long-life lubrication. Cast iron output flanges.
