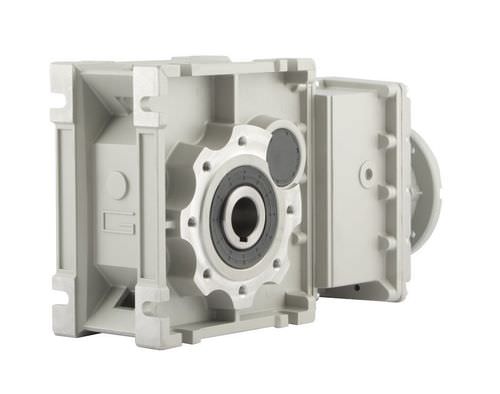

Bevel gear reducer CMB series
helical gearright angle500 - 1000 Nm

Bevel gear reducer - CMB series - Transtecno - helical gear / right angle / 500 - 1000 Nm
Bevel gear reducer - CMB series - Transtecno - helical gear / right angle / 500 - 1000 Nm
Add to favorites
Compare this product

Characteristics

Type
bevel, helical gear
Shaft orientation
right angle
Torque
500 - 1000 Nm
Applications
transmission
Power

Max.: 7.5 kW
(10.2 hp)

Min.: 0.06 kW
(0.08 hp)

Description

The high degree of modularity of CMB bevel helical gearbox allows it to be completely interchangeable with CM wormgearboxes. It is possible to set up the version required using output flanges, output shafts and optional torque arms. Common features of all CMB range are: - Die-cast aluminum housing and input flanges - Ground helical gears - Permanent synthetic oil long-life lubrication
