Standard Range Level Switches

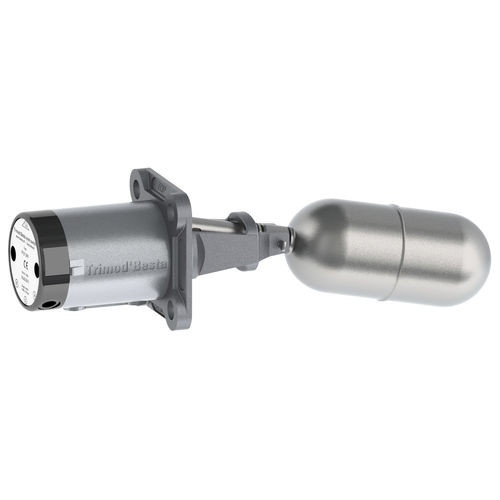

The pneumatic limit switch
A typical switch from the Standard Range, with pneumatic output signal.
Function3/2 way valve
Density of the liquidmin. 0.7 kg/dm³
Operating differential12 mm, fixed
Control connectionsG 1/8
Wetside materialstainless steel (CrNiMo)
Housing materialseawater resistant die cast aluminium
Options
Type 5P 01 04all stainless steel design
Type FP 01 04with declaration of conformity for use in explosion proof areas
Standard Range Level Switches
The pneumatic controller
Type M 01 04
>
Functionproportional controller
Supply pressure1.4 bar
Output signal0.2 to 1 bar
Nominal pressurePN 25 according to EN/DIN
Ambient temperature1 to 80°C
Density of the liquidmin. 0.7 kg/dm³
Control rangewithout rod: 30 mm
with rod: max. 230 mm
Control connectionsG 1/8" (BSPP) IT
Wetside materialstainless steel (CrNiMo)
Housing materialseawater resistant die cast aluminium
Options
Type 5M 01 04all stainless steel design
Type FM 01 04with declaration of conformity for use in explosion proof areas
