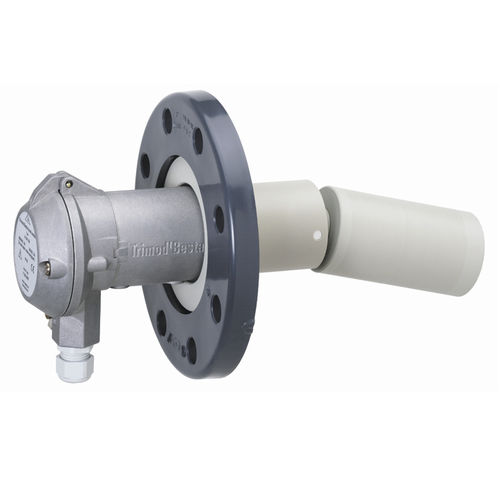

Magnetic float level switch A 301 99 series
for liquidsfor tanksfor chemicals

magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Medium
for liquids
Applications
for tanks, for chemicals, for silos, sanitary, for pump control, for the pharmaceutical industry
Material
aluminum, plastic
Mounting
horizontal, flange
Other characteristics
maintenance-free, for tanks, IP65, chemical-resistant, corrosion-resistant
Process pressure

Min.: 0 Pa (0 psi)

Max.: 1,000,000 Pa (145.04 psi)

Process temperature

Min.: 0 °C (32 °F)

Max.: 60 °C (140 °F)

Description

Plastic Range For general use in PP Type A 301 99 All wetted parts are made of PP. The switches are available with EN/DIN, ANSI, BS and JIS industrial flanges. Nominal pressurePN 10 max. 10 bar to 25°C max. 5 bar at 45°C max. 2.5 bar at 60°C Operating temperature0 to 60°C Ambient temperature0 to 60°C Density of the liquidmin. 0.65 kg/dm³ Operating differential12 mm, fixed Wetside materialPP Slip-on flangePVC Housing materialseawater resistant die cast aluminium FlangeDN 80, PN 10 to EN 1092-1 (DIN 2501) Flange facingRaised face, form B1 (form C, DIN 2526) Switch elementMicroswitch SPDT with silver contacts Switch rating250 VAC, 5 A / 30 VDC, 5 A EnclosureIP65 Weightapprox. 1.9 kg
