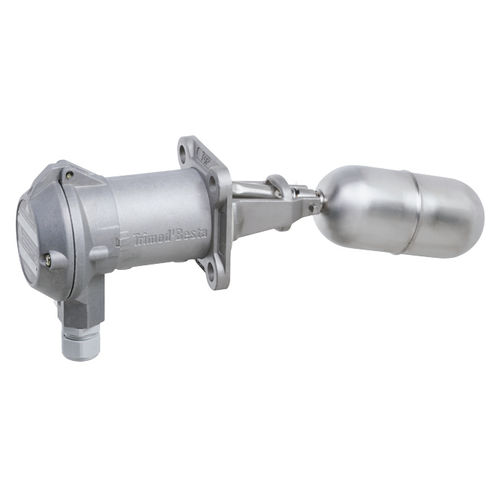

Magnetic float level switch A 01 041for waterfor oilfor wastewater
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for water, for oil, for wastewater, for fuel, for corrosive liquids, for slurries, for silicic acid
- Applications
- for tanks, for chemicals, for the food industry, for silos, for pump control, sanitary, for industrial refrigeration
- Material
- stainless steel, aluminum
- Mounting
- flange, horizontal
- Other characteristics
- IP65
- Process temperature
Min.: 0 °C (32 °F)
Max.: 300 °C (572 °F)
- Process pressure
25 bar (362.59 psi)
Description
Ambient temperature: 0 to 70°C
Density of the liquid: min. 0.7 kg/dm³
Switching differential: Fix 12 mm
Material wet side: stainless steel (CrNiMo)
Housing material: Seawater-resistant die-cast aluminium
Flange: square 92 x 92 mm, bolt circle 92 mm
Switching element: Micro switch, change-over contact (SPDT) with silver contacts
Switching capacity: 250 VAC, 5 A / 30 VDC, 5 A
Fitting length (tank side): 226 mm
Safety Integrity Level (SIL): SIL 1 (Type AA 01 041: SIL 2)
for aggressive environments, housing exclusively made of stainless steel (CrNiMo).
Typical applications: shipbuilding, refrigeration, chemical engineering, food industry, pulp and paper, drinking water supply, sewage treatment etc.
