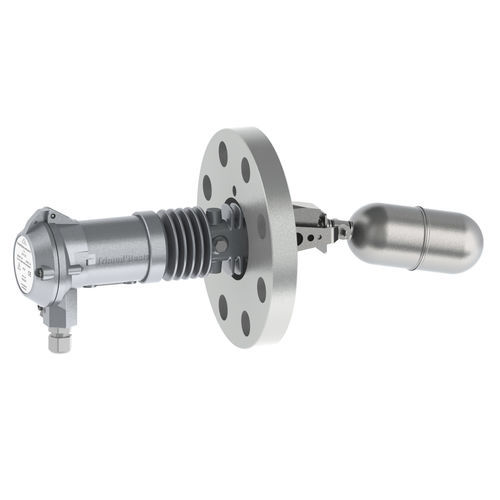

Magnetic float level switch HA 24E 02 for liquidsfor pump controlfor tanks
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Applications
- for tanks, for chemicals, for silos, for pump control, sanitary
- Material
- stainless steel, carbon steel
- Mounting
- flange, horizontal
- Other characteristics
- high-temperature, maintenance-free, rapid installation, high-pressure, IP65, IP67, ATEX
- Process temperature
Max.: 400 °C (752 °F)
Min.: 0 °C (32 °F)
- Process pressure
100 bar (1,450.38 psi)
Description
Level switches Industrial range
For high temperature application
Ambient temperature - Oto 135°C
Density of the liquid - min. 0.7 kg/dm3
Operating differential - 12 mm, fixed
Wetside material - Stainless steel (CrNiMo)
- Carbon steel P265GH zinc galvanized.
Slip-on flange - passivated
Housing material - seawater résistant die cast aluminium
Flange - DN 65, PN 100 acc. to EN 1092-1 (DIN 2501)
- smooth raised face, form B2 (form E, DIN
Flange facing - 2526)
Switch element - Microswitch SPDT with silver contacts
Switch rating - 250 VAC, 5 A/30 VDC, 5 A
Weight - approx. 9.6 kg
Safety Integrity Level (SIL) - SIL 1 (Type HAA 24E 02: SIL 2)
Approvals - ABS. BV. ClassNK. DNV-GL. LR
