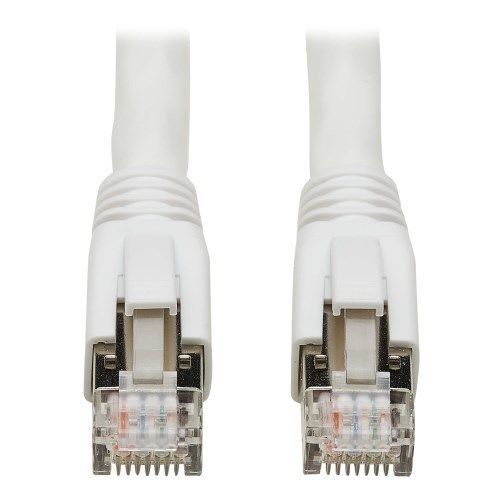

RJ45 patch cable N272-003-WH

CAT 8

Overview
Complete your ultra-high-speed 40G data center with this shielded 3 ft. white Cat8 patch cable from Tripp Lite. Certified for 25G/40G networks, it supports Power over Ethernet (PoE) and features foil shielding to block EMI/RFI for reliable data transmission and extended equipment longevity.

Key features

• Certified Cat8 S/FTP patch cord rated for 40 Gbps networks and high bandwidth operation.
• Supports Power over Ethernet (PoE) including Type 3 PoE++ / UPoE (60W, IEEE 802.3bt).
• S/FTP (shielded foil twisted pair) construction for protection against EMI/RFI and improved near-end crosstalk (NEXT) performance.
• Snagless RJ45 male connectors with strain relief to protect the locking tab and connector during installation.
• White PVC jacket for easy identification in racks or workstations; CM jacket rating.
• Gold-plated contacts for reliable connectivity; nickel-plated connector bodies.

Package Includes

• One Tripp Lite Cat8 25G/40G-certified snagless shielded S/FTP Ethernet patch cable, RJ45 male-to-male, White, 3 ft. (0.91 m), TAA

Certifications & Compliance
UL Listed; cUL Listed; CE; RoHS; IEEE 802.3bt PoE++; REACH; UKCA; Trade Agreements Act (TAA).

Physical (selected)
Color: White
Cable jacket material: PVC
Cable jacket rating: CM
Cable shielding: S/FTP (shielded foil twisted pair)
Cable outer diameter (OD): 8.0 mm
Number of conductors: 4 pair
Conductor material: Solid copper
Conductor gauge: 22 AWG
Cable length: 3 ft. (36 in.; 0.91 m)

Environmental (selected)
Operating temperature: 14° to 122°F (-10° to 50°C)
Storage temperature: 5° to 140°F (-15° to 60°C)
Operating humidity: 0% to 90% RH, non-condensing

Communications (selected)
Network compatibility: 40 Gbps
Bandwidth per TIA standard: 1000 MHz (tested higher)
Wiring configuration: EIA/TIA 568B

Package & Warranty
Covered by a Lifetime Limited Warranty.

Technical specifications

• Brand: Tripp Lite
• Technology: Cat8
• UPC/EAN: 037332249746
• PoE capability: 60W (IEEE 802.3bt), Type 3 PoE++/UPoE
• Connector A: RJ45 (male)
• Connector B: RJ45 (male)
• Connector plating: Nickel (body); contact plating: Gold
• Connector type: Snagless with strain relief
• Wiring configuration: EIA/TIA 568B
• Cable jacket color/material: White / PVC
• Cable shielding: S/FTP
• Conductor: Solid copper, 22 AWG
• Cable length: 3 ft. (0.91 m)
• Bandwidth / network: up to 1000 MHz (Cat8), supports 40 Gbps
• Operating temperature: -10° to 50°C
• Storage temperature: -15° to 60°C
• Relative humidity: 0-90% non-condensing
• Jacket rating: CM
• Warranty: Lifetime limited warranty
