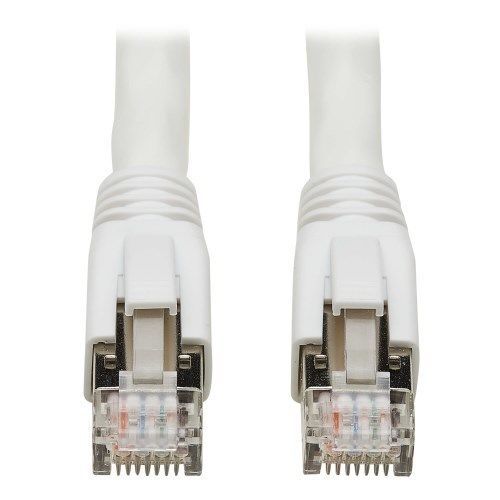

RJ45 patch cable N272-010-WH

CAT 8

Overview
This certified Cat8 shielded S/FTP patch cable provides up to 40 Gbps data throughput for high-performance 40GBase-T networks. It supports Power over Ethernet (PoE) and is finished with a white PVC jacket and snagless RJ45 connectors for reliable installation and easy identification.

Features

• Certified Cat8 S/FTP patch cord rated for 40 Gbps networks and up to 2 GHz (2000 MHz) bandwidth.
• Supports PoE (up to 60W with IEEE 802.3bt) for powering compatible devices.
• Foil shielded (S/FTP) construction reduces EMI/RFI and near-end crosstalk (NEXT).
• Snagless RJ45 male connectors with strain relief to protect locking tabs during installation.
• Durable white PVC jacket for fast visual identification in rack or workstation environments.

Package Includes

• Cat8 25G/40G Certified Snagless Shielded S/FTP Ethernet Cable (RJ45 M/M), White, 10 ft. (3.05 m) — model family N272 (specific part N272-010-WH)

Certifications & Compliance

• UL Listed; cUL Listed
• CE (Europe)
• RoHS compliant
• IEEE 802.3bt PoE++
• REACH
• UKCA
• Trade Agreements Act (TAA)

Technical Specifications

• UPC / EAN: 037332249760
• Technology: Cat8
• PoE Capability: 60W (IEEE 802.3bt)
• Side A Connector: RJ45 (Male)
• Side B Connector: RJ45 (Male)
• Connector Plating: Nickel
• Contact Plating: Gold
• Connector Type: Snagless
• Wiring Configuration: EIA/TIA 568B
• Cable Jacket Color: White
• Cable Jacket Material: PVC
• Cable Jacket Rating: CM
• Cable Shielding: S/FTP (shielded foiled twisted pair)
• Cable Outer Diameter (OD): 8.0 mm
• Number of Conductors: 4 pair
• Conductor Material: Solid copper
• Conductor Gauge: 22 AWG
• Cable Length: 10 ft. (3.05 m)
• Bandwidth per TIA Standard: 1000 MHz
• Maximum Bandwidth as Tested: 1200 MHz
• Network Compatibility: 40 Gbps
• IEEE Standards Supported: 802.3bt
• Product Warranty Period (Worldwide): Lifetime limited warranty
