RJ45 patch cable N001-001-BL

category 5ecategory 5

Overview

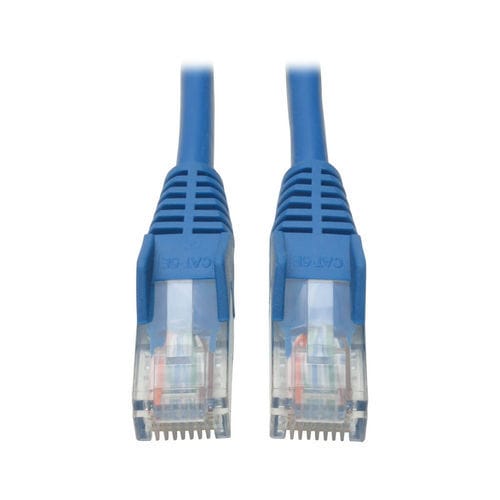

This blue snagless Cat5e Ethernet cable features two snagless molded RJ45 male connectors with integral strain relief. Constructed from PVC 4-pair stranded UTP, it is rated for up to 350 MHz and supports 1 Gbps communication. Available in multiple lengths and colors to suit Cat5/5e installations.

Features

• For Category 5 (Cat5) and Category 5e (Cat5e) cabling applications
• Length: 1 ft. (0.31 m); Color: Blue; Connectors: RJ45 (male)
• Molded connectors with integral strain relief
• Snagless design protects the locking tabs on RJ45 connectors during installation
• PVC 4-pair stranded UTP construction
• Rated for 350 MHz / 1 Gbps communication
• Meets standards including IEEE 802.3ab, ANSI/EIA/TIA-568, ISO/IEC 11801 and ETL (category 5e draft 11)
• Also available in other colors and lengths; non-snagless and Cat6 alternatives available

System Requirements

• Compatible with 1000Base-T (1 Gbps), 10/100Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type3 applications

Package Includes

• 1 ft. (0.31 m) Blue snagless Cat5e patch cable (RJ45 M/M)

Certifications & Compliance

• UL Listed; cUL Listed
• CE, RoHS, REACH, UKCA

Technical specifications

• UPC Code: 037332172426
• Technology: Cat5/5e
• Power Over Cable (PoC) Support: No
• Side A - Connector 1: RJ45 (MALE)
• Side B - Connector 1: RJ45 (MALE)
• Contact Plating: Gold
• PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
• Connector Type: Molded; Snagless
• Wiring Configuration: EIA/TIA 568B
• Cable Jacket Color: Blue
• Cable Jacket Material: PVC
• Cable Jacket Rating: CM
• Cable Shielding: UTP (Unshielded Twisted Pair)
• Cable Outer Diameter (OD): 5.0 mm
• Number of Conductors: 4 pair
• Conductor Material: Stranded copper
• Conductor Gauge: 26 AWG
• Cable Length: 0.30 m (30.5 cm)
• Shipping Dimensions (hwd / cm): 22.86 x 17.78 x 1.27
• Shipping Weight: 0.03 kg
• Operating Temperature Range: -10° to 40°C (14° to 104°F)
• Storage Temperature Range: -15° to 50°C (5° to 122°F)
• Operating Humidity Range: 0% to 90% RH, non-condensing
• Storage Humidity Range: 0% to 90% RH, non-condensing
• Bandwidth per TIA Standard: 100 MHz
• Maximum Bandwidth as Tested: 350 MHz
• Network Compatibility: 1 Gbps (Gigabit)
• IEEE Standards Supported: 802.3ab; 802.3at
• Product Warranty Period (Worldwide): Lifetime limited warranty
