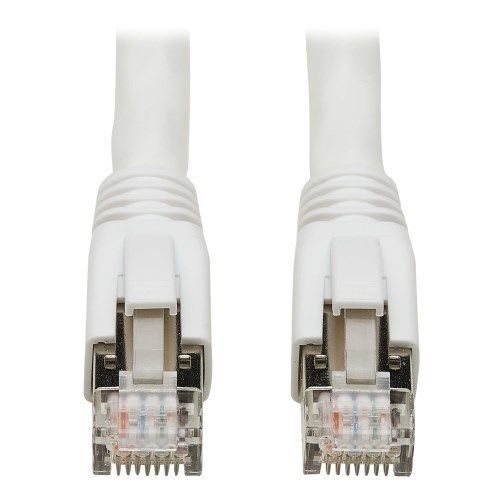

RJ45 patch cable N272-006-WH

CAT 8

Overview
Tripp Lite Cat8 shielded S/FTP patch cable designed for ultra-high-speed 25G/40G networks. Snagless RJ45 male-to-male connectors, white PVC jacket, supports PoE and provides shielding to reduce EMI/RFI for improved signal integrity.

Key Features

• Certified Cat8 S/FTP patch cord rated for 40 Gbps networks and up to 2 GHz (2000 MHz) bandwidth
• Supports Power over Ethernet (PoE) including Type 3 (60W, IEEE 802.3bt) for powering PoE devices
• S/FTP construction (shielded foiled twisted pair) reduces EMI/RFI and near-end crosstalk, improving reliability and performance
• Snagless RJ45 male connectors with integral strain relief to protect locking tabs during installation
• White PVC jacket for easy identification in racks or workstations
• Tripp Lite series product; TAA compliant where indicated

Package Includes

• One Tripp Lite Cat8 25G/40G Certified Snagless Shielded S/FTP Ethernet Cable, RJ45 male-to-male, White, 6 ft. (1.83 m)

Certifications & Compliance

• UL Listed; cUL Listed
• CE, RoHS, REACH, UKCA
• Supports IEEE 802.3bt PoE Type 3 (60W)
• Trade Agreements Act (TAA) where specified

caractéristiques / spécifications techniques

• Product family: Tripp Lite Cat8 series
• UPC Code: 037332249753
• Technology: Cat8, S/FTP
• Data rate / Network compatibility: 40 Gbps
• Bandwidth (tested): up to 1200 MHz; per standard up to 1000 MHz
• PoE capability: 60W (802.3bt, Type 3 PoE++ / UPoE)
• Side A connector: RJ45 (male)
• Side B connector: RJ45 (male)
• Connector type: Snagless with strain relief
• Connector plating: Nickel; Contact plating: Gold
• Wiring configuration: EIA/TIA 568B
• Color / Jacket: White PVC jacket, CM rated
• Cable shielding: S/FTP (foil shielded pairs + overall shield)
• Conductor: Solid copper, 4 pair, 22 AWG
• Cable outer diameter: approx. 8.0 mm
• Cable length: 6 ft (72 in / 1.83 m)
• Operating temperature: 14 to 122°F (-10 to 50°C)
• Storage temperature: 5 to 140°F (-15 to 60°C)
• Operating humidity: 0% to 90% RH, non-condensing
• Warranty: Lifetime limited warranty
