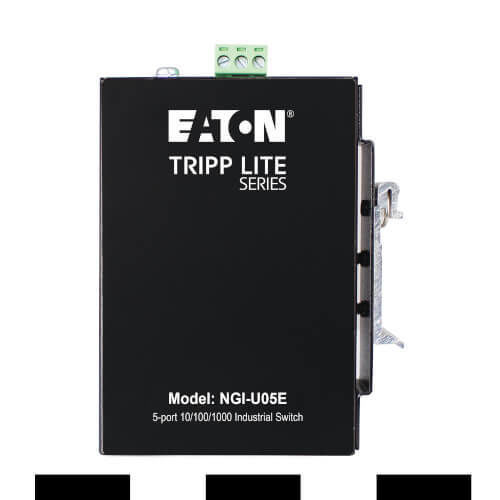

Unmanaged switch NGI-U05E

5 portsgigabit Ethernetwall-mount

Overview
The Tripp Lite NGI-U05E is a rugged, unmanaged 5‑port industrial gigabit Ethernet switch providing 10/100/1000 Mbps connectivity for harsh environments. It supports Eaton iQoS for protocol-aware prioritization and operates across a wide temperature range (-40° to 75°C).

Key features

• 5 auto-negotiable 10/100/1000 Mbps RJ45 ports
• iQoS prioritization for PROFINET, EtherNet/IP and IEC 61850 GOOSE traffic
• Rugged metal enclosure with vibration and shock resistance
• Wide operating temperature: -40° to 75°C (-40° to 167°F)
• LEDs for power, link/activity and port speed
• TAA compliant for applicable procurement
• Unmanaged operation: MAC auto-learning/aging, auto MDI/MDI-X, IEEE 802.3x flow control
• Fanless design for maintenance-free operation
• DIN-rail or wall-mountable (clips/brackets pre-installed)

Package contents

• Tripp Lite NGI-U05E 5-Port Unmanaged Industrial Gigabit Ethernet Switch
• Pre-installed DIN rail-mounting clip
• Pre-installed wall-mounting bracket
• Owner's manual

Certifications & compliance

• RoHS
• CE
• FCC (USA)
• REACH
• IEEE 802.3 standards
• Trade Agreements Act (TAA)

Mounting & power
Mount on 35 mm DIN-rail using the pre-installed clip or on a wall using the rear mounting holes.
Power input via 3-pin terminal block: 12–48 VDC (device must be supplied by a SELV circuit).

Indicators
LED indicators: Power (green); per-port speed/activity (10/100/1000 Mbps and activity LEDs).

Technical specifications

• Model number: NGI-U05E
• UPC / EAN: 037332281517
• Product type: Unmanaged Industrial Gigabit Ethernet Switch
• Ports: 5 x 10/100/1000BASE-T (RJ45)
• Switching capacity: 10 Gbps (1 Gbps per port, full duplex)
• MAC addresses: 2000 (auto-learning)
• Jumbo frames: 9000 bytes
• Industrial QoS (iQoS): Yes (PROFINET/EtherNet/IP/GOOSE prioritization)
• Surge/ESD protection: ±8kV air / ±4kV contact
• Flow control: IEEE 802.3x
• Power input: 3-pin terminal block, 12–48 VDC (max 0.2 A). Device must be supplied by SELV circuit.
• Power consumption: 3 W
• Form factor / mounting: DIN-rail; wall-mountable
• Enclosure material / color: Aluminum, black
• Dimensions (product): 10.9 x 2.2 x 7.3 cm (H x W x D)
• Shipping dimensions: 6.20 x 12.80 x 23.70 cm (H x W x D)
• Product weight: 0.19 kg
• Shipping weight: 0.31 kg
• Operating temperature: -40° to 75°C (-40° to 167°F)
• Storage temperature: -40° to 85°C (-40° to 185°F)
• Operating humidity: 5% to 95% (non-condensing)
• Operating altitude: 0–2000 m (0–6562 ft)
• Fans: Fanless
• Warranty: 3-year limited warranty
