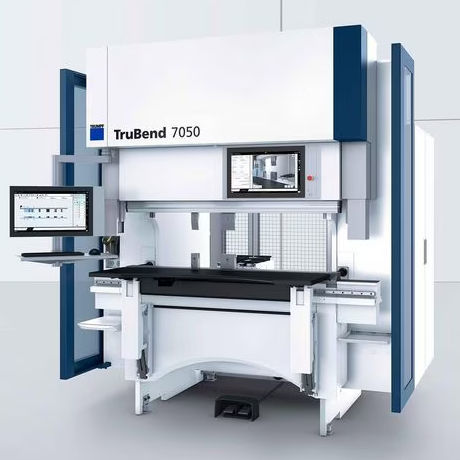

Servo-electric press brake TruBend 70 series

CNC6-axishigh-speed

Overview
The TruBend Series 7000 is a compact, ergonomic high-speed press brake designed for bending small and medium parts with reliable angle accuracy. It combines direct drive, automatic angle measurement and support for seated or standing operation to enable productive, space-efficient workflows.

Key benefits

• Efficient production of small/medium parts with precise first-part angles.
• Fast and safe setup using BendGuard Automatic under CNC control.
• Small footprint: compact installation area and forklift-transportable design.
• Operator comfort: adjustable support table, swivel control and LED work-area lighting; supports seated and standing operation.

Angle measurement & software
Supports ACB Wireless and ACB Laser angle measurement. ACB Speed reduces cycle time by measuring springback on the first part only and applying the correction to subsequent parts. ACB Smart material database is available on the control. Software options include TruTops Boost and TecZone Bend for 2D/3D program generation and optimization.

Ergonomics & safety
The machine includes seating/standing aids, ergonomic support consoles, swivelling Touchpoint TruBend control with 3D visualisations and LED illumination. BendGuard and BendGuard Automatic provide monitored and CNC-controlled safety device positioning for faster, safer tool changes.

Precision & automation
6-axis backgauge for accurate positioning; 2D code scanner for automatic program loading; automatic tool clamping to shorten setup times. Automation options such as Flex Cell enable compact, automated production of simple parts and higher throughput when required.

Technical data (extract)
Model | TruBend 7036 | TruBend 7050
Press force | 360 kN | 500 kN
Bending length | 1020 mm | 1530 mm
Width between columns | 932 mm | 1305 mm
Usable open height | 295 mm | 385 mm
Throat depth | 150 mm | 250 mm
User interface | Touchpoint TruBend | Touchpoint TruBend
Max Y-axis speed (operation) | 25 mm/s | 25 mm/s
Dimensions (L×W×H) | 1900×1340×2380 mm | 2420×1805×2580 mm
Weight | 3300 kg | (variant dependent)

Applications
Optimised for small and very small parts, short-flange bends and components up to about 1500 mm (model dependent). Suitable for ergonomic, space-constrained production lines requiring repeatable angle accuracy.

Technical specifications

• Series: TruBend Series 7000 (examples: 7036, 7050)
• Press force: 7036 = 360 kN; 7050 = 500 kN
• Bending length: 7036 = 1020 mm; 7050 = 1530 mm
• Width between columns: 7036 = 932 mm; 7050 = 1305 mm
• Usable open height: 7036 = 295 mm; 7050 = 385 mm
• Throat depth: 7036 = 150 mm; 7050 = 250 mm
• User interface: Touchpoint TruBend
• Max Y-axis speed (operation): 25 mm/s
• Dimensions (L×W×H): 7036 = 1900×1340×2380 mm; 7050 = 2420×1805×2580 mm
• Backgauge: 6-axis backgauge for precise positioning
• Angle measurement: ACB Wireless, ACB Laser, ACB Speed, ACB Smart material database
• Safety systems: BendGuard, BendGuard Automatic
• Automation options: Flex Cell, 2D code scanner, automatic tool clamping
