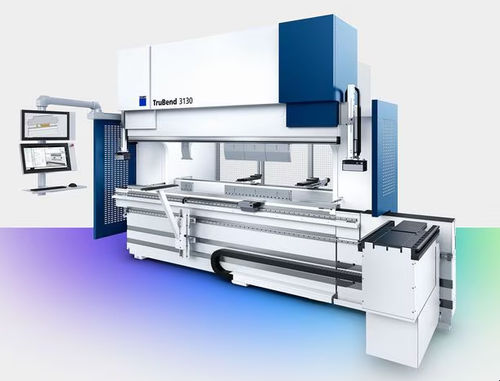

Hydraulic press brake TruBend 31 series

CNC4-axis5-axis

Overview
The multipurpose press brake family for industrial sheet metal forming. TruBend Series 3000 delivers precise angles, repeatable part quality and stable processes for a wide range of bending tasks while offering selected premium functions at competitive cost-efficiency.

Key benefits

• Cost efficiency: Selected premium features optimized for high productivity per investment.
• Angle accuracy: ACB laser angle measuring system provides non-contact angle measurement and automatic correction (accuracy ±0.3°).
• Productivity: Offline programming with TecZone Bend enables program creation while the machine remains in production.
• Operator support: Bending aids with 150 kg carrying capacity reduce manual effort for heavy parts.
• Service & tooling: Compatibility with TRUMPF bending tools plus training and technical support to reduce downtime.

Main features and functions

• Backgauge: Standard 4-axis backgauge scalable to 5 axes; optional X-traverse for right-hand gauge finger (±75 mm) and up to three additional gauge fingers for long profiles.
• BendGuard: Intelligent light-field monitoring combining safety and productivity.
• Usable installation height: Large clear installation height (up to 615 mm on selected models) for high nests and complex components.
• OnDemand hydraulic system: Dynamic working speed 15 mm/s and rapid feed 170 mm/s for consistent quality and energy-efficient cycle times.
• ACB laser angle measuring: Optical non-contact system using a projected laser line and camera; four measuring modes (ACB Speed, ACB Smart, Identify, Copy Plunging Depth); measuring range 30°–150°, accuracy ±0.3°.
• Bending aids: Up to two plastic-pad bending aids per machine, each with 150 kg capacity; CNC-controlled vertical axis and automatic height adjustment to match die and part geometry.
• Support brackets: Standard 70 kg and optional 100 kg variants, height-adjustable and rail-mounted; optional X-positioning on 100 kg version.
• Additional monitor: Optional second swivel monitor to support paperless production and visualization (images, PDFs, TecZone Bend); operated via mouse/keyboard.
• Digital connectivity & software: Integration with TRUMPF software (TruTops Boost, TecZone Bend) and industry interfaces (OPC UA) for monitoring, analysis and Smart Factory solutions.

Technical data (comparison)
Model | TruBend 3100 | TruBend 3130 | TruBend 3170
Press force | 1000 kN | 1300 kN | 1700 kN
Bending length | 3230 mm | 3230 mm | 4250 mm
Width between columns | 2690 mm | 2690 mm | 3680 mm
Usable open height | 385 mm | 615 mm | 615 mm
User interface | Touchpoint TruBend | Touchpoint TruBend | Touchpoint TruBend
Max. Y-axis speed (rapid) | 170 mm/s | 170 mm/s | 170 mm/s
Max. Y-axis speed (operation) | 15 mm/s | 15 mm/s | 15 mm/s
Dimensions (L x W x H) | 4220 x 2003 x 2375 mm | 4220 x 2003 x 2835 mm | 5210 x 2030 x 3000 mm
Weight (approx.) | 9200 kg | 10800 kg | 15200 kg

Applications
Suitable for varied bending tasks including complex bends, long profiles and processing of different sheet thicknesses with high flexibility and repeatability.

Software

• TruTops Boost: All-in-one 3D programming solution with TRUMPF ruleset and automation functions.
• TecZone Bend: Combines office and shop-floor programming; generates program proposals including NC code from 2D/3D data.

Characteristics / technical specifications

• Series name: TruBend Series 3000
• Models: TruBend 3100, TruBend 3130, TruBend 3170
• Press force: 1000 kN (3100), 1300 kN (3130), 1700 kN (3170)
• Bending length: 3230 mm (3100/3130), 4250 mm (3170)
• Width between columns: 2690 mm (3100/3130), 3680 mm (3170)
• Usable open height: 385 mm (3100), 615 mm (3130/3170)
• User interface: Touchpoint TruBend
• Y-axis speeds: operation 15 mm/s; rapid 170 mm/s
• ACB Laser: non-contact angle measurement, ±0.3°, 30°–150° measuring range
• Backgauge: 4 axes standard, scalable to 5 axes; X-movement for right gauge finger up to ±75 mm (5-axis)
• Bending aid capacity: 150 kg per aid (up to two)
• Support brackets: 70 kg standard; 100 kg optional; height-adjustable, rail-mounted
• Connectivity: OPC UA interfaces; integration with TRUMPF monitoring and analysis tools
