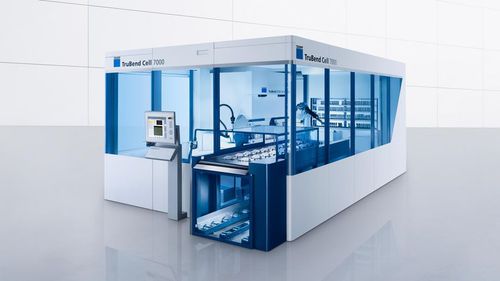

Hydraulic press brake TruBend Cell 7000

CNChigh-speedrobotic

Overview
The automated solution for high‑speed, continuous production of small parts. TruBend Cell 7000 combines compact layout with integrated automation modules to enable unattended, high‑throughput bending of small components (up to 500 x 380 mm).

Key features

• Designed for continuous 24/7 high‑speed production of small parts.
• Increased throughput via dynamic drive concept and precision backgauges.
• Small‑part handling: efficient processing of components up to 500 x 380 mm.
• Automated part flow: conveyor system with flexible storage and pallet options for finished parts.
• Accurate angles from first part: Automatically Controlled Bending (ACB) angle measurement and correction.
• Automated tool handling: ToolMaster Bend for automatic tool set‑up without gripper change.

Components and options

• BendMaster: automated part handling and bending execution for small components.
• ToolMaster Bend: automatic tool loading with ID‑chip recognition.
• LoadMaster Bend: parallel loading of blanks with integrated sheet sensor for precise transfer to the BendMaster.
• Split tool clamp: optimises gripper usage and reduces regripping.
• Pivoted‑jaw gripper and gripper changing console with tool cleaning station for automated gripper exchange and maintenance.
• Conveyor system: places finished parts into boxes or onto a pallet conveyor.
• ACB and ACB Wireless: automatic angle measurement and wireless communication between tool and control for accurate results on short legs and reflective surfaces.
• TruTops Bend software: programming support including bend deductions, tool selection and sequence calculation for first‑part quality.
• Tools with ID chip and sensor tools for automatic detection and in‑process measurement.

Technical data (example: TruBend Cell 7036)
Press force: 217 kN
Bending length: 2 x 500 mm
Width between columns: 1530 mm
Usable open height: 300 mm
Throat depth: 515 mm
Working speed: up to 50 mm/s
Maximum part size (BendMaster): 500 x 380 mm
Maximum part weight (BendMaster): 1.5 kg
Maximum carrying capacity: 15 kg
Minimum sheet thickness: 0.5 mm
Maximum sheet thickness: 6 mm
BendMaster weight: 114 kg
Weight, basic machine: 4200 kg
Machine dimensions (L x W x H): 5500 mm x 3870 mm x 2630 mm
Minimum hall height: 5500 mm

Specifications

• Model: TruBend Cell 7000
• Press force (example 7036): 217 kN
• Working/stroke speed: up to 50 mm/s
• Maximum part size (BendMaster): 500 x 380 mm
• Maximum part weight: 1.5 kg
• Maximum carrying capacity: 15 kg
• Sheet thickness range: 0.5 – 6 mm
• Typical footprint (example): 5500 x 3870 x 2630 mm
• Minimum hall height: approx. 5500 mm
