Cable Extension Transducer with optional integrated angle sensors
Measuring length absolute from 5.0m to 10.0m
CANopen PDO redundant output

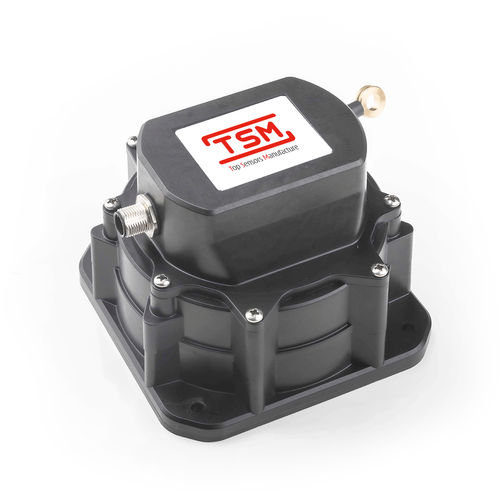

Model CET10000 is a rugged and high performance wire cable pull transducer with CANopen output designed for industrial applications and are therefore particularly high-quality and durable.
Excellent repeatability, high IP rating, resistance to shock and vibrations, and high electromagnetic compatibility make this transducer suitable for mobile hydraulics applications such as agricultural vehicles, earth-moving machines and hoisting equipment.
CHARACTERISTICSMeasuring length up to 10 mIntegrated single or redundant inclinometersRedundant sensorsLinearity up to ±0.8 % (FS) of the measuring rangeCompact dimensionsHigh protection level IP67 and wide temperature range from -40°C ... +85°CADVANTAGESThe suitable measuring length for every applicationSimple selection and fast installationHigh accuracy at economic pricesReliability and long service life for outdoor applicationsFor even higher plant availabilityCost, space and installation work saving
TECHNICAL SPECIFICATIONMeasuring range6...10mMeasuring wireAISI304 steel wire Nylon coated ø 0.9 mmWire fasteningEyeletInternal diameter ø 8 mmOuter diameter ø 15 mmHeight 5 mmWire pull-out speed maxmax. 1m/sAccelerationmax. 10m/s2Cable transducer resolution0.6 mmCable transducer Linearity±0.8 % (FS)Cable transducer Repeatability±0.4 % (FS)Inclinometer resolution0.1 °Inclinometer accuracy±0.6 °Temperature drift inclinometer±0.01 °/°CPull-back forcetyp. 4.5 NPull-out forcetyp. 9 NLife cycles 500.000Drum circumference245 mmType of connection Male flange connector M12,
