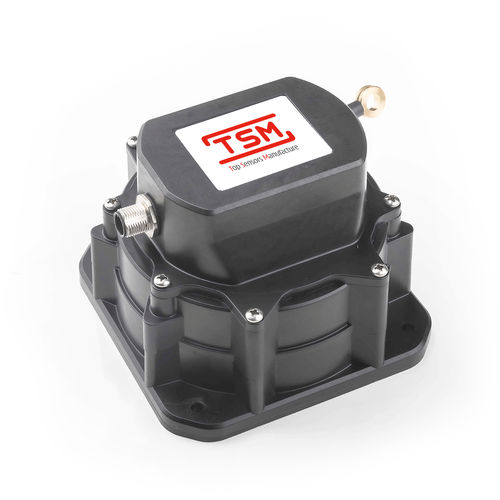

Analog displacement transducer CET10000 Analog
draw-wirenon-contactIP67

analog displacement transducer
analog displacement transducer
analog displacement transducer
analog displacement transducer
analog displacement transducer
analog displacement transducer
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Contact / non-contact
non-contact
Output signal
analog
Protection class
IP67
Applications
for mobile hydraulics, industrial, for automotive applications
Other characteristics
absolute, rugged, compact, high-precision, redundant, economical
Measuring range

Min.: 5 m (16'04")

Max.: 10 m (32'09")

Description

Cable Extension Transducer Measuring length absolute from 5.0m to 10.0m Analog Output Description Model CET10000 is a rugged and high performance wire cable pull transducer with Analog output designed for industrial applications and are therefore particularly high-quality and durable. Excellent repeatability, high IP rating, resistance to shock and vibrations, and high electromagnetic compatibility make this transducer suitable for mobile hydraulics applications such as agricultural vehicles, earth-moving machines and hoisting equipment. CHARACTERISTICSMeasuring length from up to 10 mSingle or Redundant outputCompact dimensionsLinearity up to ±1 % (FS) of the measuring range.High protection level IP67 and wide temperature range from -40°C ... +85°CADVANTAGESThe suitable measuring length for every applicationSimple selection and fast installationHigh accuracy at economic pricesReliability and long service life for outdoor applicationsFor even higher plant availabilityCost, space and installation work saving TECHNICAL SPECIFICATIONMeasuring range6...10mMeasuring wireAISI304 steel wire Nylon coated ø 0.9 mmWire fasteningEyeletInternal diameter ø 8 mmOuter diameter ø 15 mmHeight 5 mmWire pull-out speed maxmax. 1m/sAccelerationmax. 10m/s2Cable transducer resolution15 bitCable transducer Linearity±1 % (FS)Cable transducer Repeatability±0.5 % (FS)Pull-back forcetyp. 2 NPull-out forcetyp. 8 NLife cycles 500.000Drum circumference245 mmType of connection Male flange connector M12, 5-pinHousingpolycarbonate reinforced with glass fibersProtection IP67Temperature
