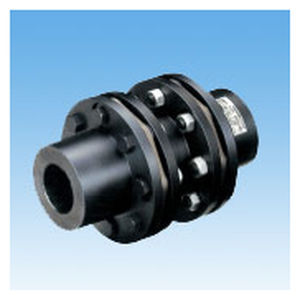

Gear coupling NEH series

gear coupling
gear coupling
Add to favorites
Compare this product


gear, disc
Product applications
Other characteristics
Installation system

Max.: 176,000 Nm (129,810.9383

Min.: 8,820 Nm (6,505.2982


The spacer unit in the modular spacer models can be disassembled and assembled without disassembling the disk coupling portion. The adapter hub type allows for larger shaft bore diameters than standard hubs. ・Applicable shaft diameter :Φ72mm~Φ289mm Features ・In addition to the standard hub (N hub), an adapter hub (A hub) that can have larger shaft bore diameter, and a unit spacer hub (U hub) that allows the spacer unit to be removed and assembled without disassembling the disc coupling unit, are also available. ・Gear coupling replacement type can also be manufactured to replace gear couplings. ・Long spacer type can be manufactured upon request. ・It is also possible to manufacture electrically insulated type using split spacers and insulating bolt sets. ※If you like to coupling other than the key, please contact us.
