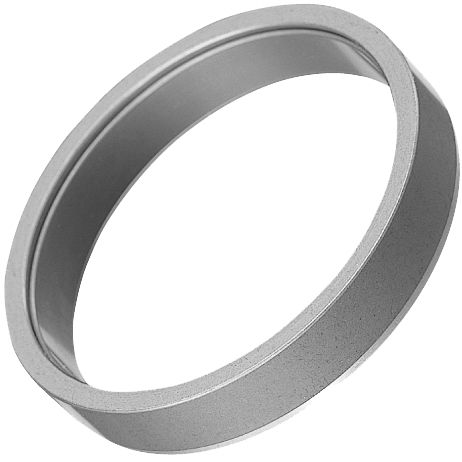

Steel tightening ring EL series

This is the simplest element type and allows for optimal design. - Compact and lightweight, it does not take up more space than necessary for installation. *The pressure flange, pressure sleeve, and tightening bolts must be provided by the customer. *Outer ring pressure is the standard, in which case the boss does not move during assembly. Standard Specifications · The bolt tightening and number of Power-Lock EL to be incorporated can be freely selected, allowing for an optimal design depending on the required fastening force. -It has a perfect ring shape, so it also has excellent dynamic balance. - It is inexpensive and suitable for large-scale use. - This series is highly compatible and is available from many manufacturers both domestically and internationally. For information on the design of the pressure mechanism, please see here. Applicable shaft diameter: Φ10 to Φ150 Applicable tolerances: Shaft: Φ10~38 h6 Φ40 or more h8 hub bore: Φ10~38 H7 Φ40 or more H8 Applicable surface roughness: Ra0.8
