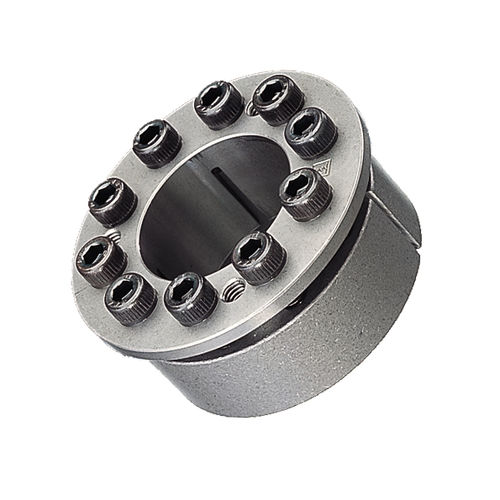

Friction coupling AE seriesself-centeringsteelfor shafts
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Construction
- self-centering, steel
- Product applications
- for shafts
- Installation system
- flange
- Torque
Min.: 265 Nm
(195.45397 ft.lb)Max.: 27,000 Nm
(19,914.17803 ft.lb)
Description
It has the same inner and outer diameter as the AS series, but comes with a flange and centering function.
- It has the same inner and outer diameter as the AS series, and is suitable for cases where a centering guide section cannot be installed.
* Centering function included. No need for troublesome boss step processing.
* The boss does not move during assembly.
Standard Specifications
- A simple type consisting of three parts: inner ring, outer ring, and tightening bolt.
- This series is highly compatible and is available from many manufacturers both domestically and internationally.
Applicable shaft diameter: Φ19 to Φ150
Applicable tolerance: Shaft: h8 Hub bore: H8
Applicable surface roughness: Ra1.6
Catalogs
Power-Lock
88 Pages
