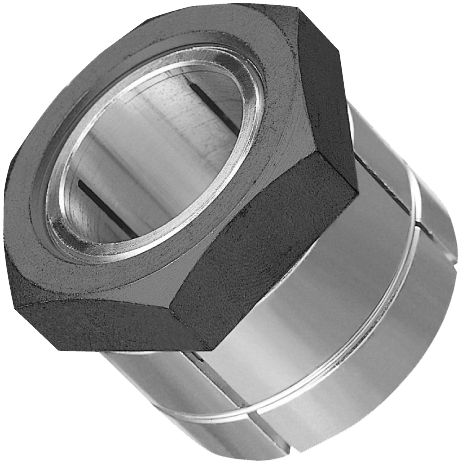

Friction coupling MLseries

self-centeringsteelfor shafts

A simple fastening type that can be easily fastened with just one nut. - Can be easily fastened with just one nut, significantly reducing assembly time. *Shaft diameters up to Φ32 are ML type, and Φ34 and above are MG type, and the appearances are different. * Centering function included. No need for troublesome boss step processing. Standard Specifications - The surface is plated for simple rust prevention, and the nuts also have a special surface treatment, so there is no need to apply oil during assembly. -The only one in the series that can be attached to hubs that are shorter than Power-Lock length. · The tightening torque can be changed within the range of 1/2 to 1.1 times the standard torque, allowing it to be used in accordance with the boss strength. Applicable shaft diameter: Φ5 to Φ75 Applicable tolerance: Shaft: h8 Hub bore: H8 Applicable surface roughness: Ra1.6
