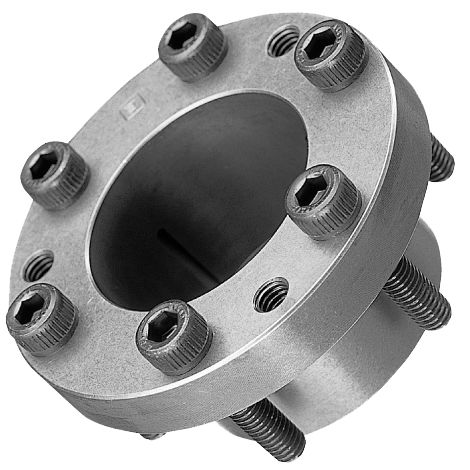

Locking device coupling EF
for shaftsflangetorque

locking device coupling
locking device coupling
locking device coupling
Add to favorites
Compare this product


Characteristics

Type
locking device
Product applications
for shafts, flange
Other characteristics
torque, self-centering
Torque

Max.: 12,600 Nm
(9,293.2831 ft.lb)

Min.: 39 Nm
(28.7649 ft.lb)

Description

A pressure flange integrated type with the same inner and outer diameters as the EL series. ・The EF Series, designed with the same inner and outer diameters as the EL Series, integrated pressure flange saves you the hassle of making a pressure flange. ・The EF Series offers 2 to 3 times the rated torque capacity of the EL Series. You can use fewer units of the EF Series to replace EL Series unit. ※With self-centering function. No need for the hassle of machining on hubs for guide portions. ※When assembling, the hub moves slightly toward the front in the axial direction.Please contact Tsubaki representatives for details. Standard package ・Suitable for small hub applications with the small inner-to-outer diameter ratio. ・Tsubaki's original series, which are not available in any other company. ・Simply constructed with only an inner and an outer ring and a few locking bolts.
