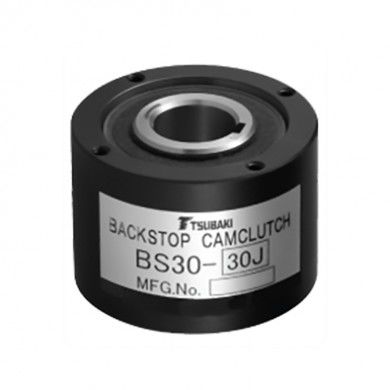

Backstop one-way clutch BS Seriesrollerspraglow-speed
Add to favorites
Compare this product
Characteristics
- Technology
- roller, sprag
- Applications
- backstop
- Other characteristics
- low-speed
- Torque
Max.: 686,000 Nm
(505,967.634404 ft.lb)Min.: 294 Nm
(216.843272 ft.lb)- Diameter
Max.: 450 mm
(17.72 in)Min.: 20 mm
(0.79 in)- Rotational speed
Max.: 350 rpm
(2,199.1149 rad.min-1)Min.: 50 rpm
(314.1593 rad.min-1)
Description
This is a clutch specifically designed to prevent reverse rotation of conveyors (for low speeds).
For low speed idling applications.
A low-speed idling type that can be attached to the final rotating shaft of a conveyor, pump, etc.
Torque range: 294 to 686000 N·m
Features
-The BS series has a cam and roller structure.
- Thorough dust prevention measures keep out dust.
-High reliability due to the development and adoption of a dedicated cam.
- Sizes BS30 to BS135 are pre-greased and Do not require lubrication.
- A low-speed, idling type that can be attached to the final rotating shaft of a conveyor, pump, etc.
