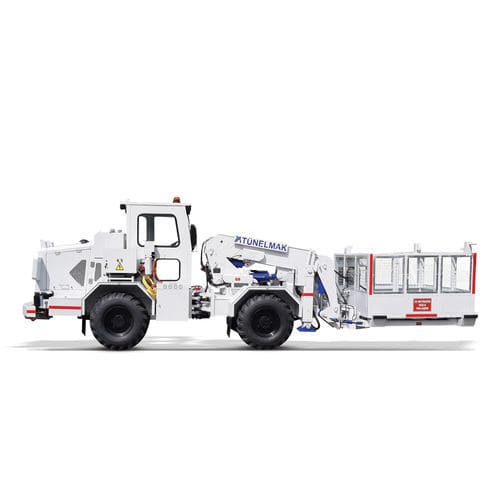

Underground mining utility vehicle Adroit 520AH

dieselself-propelled4-wheel drive

Overview
Adroit 520AH is a self-propelled articulated basket platform designed for underground and confined-space works. Manufactured to EN280 standards, it features a Deutz 103 kW Euro Stage III diesel engine, Dana 4×4 hydrostatic drivetrain axle and drive system, and an S.A.H.R brake system enabling 40% gradient climbing.

Key features

• 1500 kg + 2 personnel boom lift capacity (boom closed)
• Maximum lifting height (basket floor): 5.8 m
• Deutz 103 kW diesel engine (Euro Stage III)
• Hydrostatic drive with Dana 4×4 drivetrain axle and transmission
• S.A.H.R brake system with 40% gradient capability
• Stabilizer cylinders and automatic basket stabilization
• Momentum sensing and overload sensing safety systems

Basket and lifting capacity
The basket measures 2.00 m x 2.00 m x 1.10 m. Capacity: 1500 kg + 2 personnel when the boom is fully closed; 500 kg + 2 personnel when the boom is fully opened (telescoped). The boom provides ±30° right–left and -15° / +65° down–up movements. Bearing capacity without stabilizers (boom closed): 500 kg + 2 personnel. The cabin is certified Level 2 FOPS and ROPS.

Applications
Adroit 520AH is suited to mining, metro tunnel maintenance and other underground operations including ventilation systems, electro-mechanical installations, injection operations and dynamite placement.

Technical specifications

• Model: Adroit 520AH
• Compliance: EN280 Standards
• Engine: Deutz 103 kW diesel (Euro Stage III)
• Drive / Transmission: Dana 4×4 hydrostatic drivetrain axle and hydrostatic drive system
• Brake system: S.A.H.R (enables 40% gradient climbing)
• Maximum lifting height (basket floor): 5.8 m
• Ceiling access (reach): 7.8 m
• Basket size: 2.00 m x 2.00 m x 1.10 m
• Basket capacity (boom closed): 1500 kg + 2 personnel
• Basket capacity (boom fully opened / telescoped): 500 kg + 2 personnel
• Bearing capacity without stabilizers (boom closed): 500 kg + 2 personnel
• Boom movements: ±30° right/left; -15° / +65° down/up
• Safety systems: stabilizer cylinders, automatic basket stabilization, momentum sensing, overload sensing
• Cabin: Level 2 FOPS and ROPS certified
• Typical applications: mining, metro tunnels, underground ventilation works, electro-mechanical installations, injection works, dynamite placing
