Underground mining utility vehicle Adroit 520W

diesel4-wheel drive

Overview

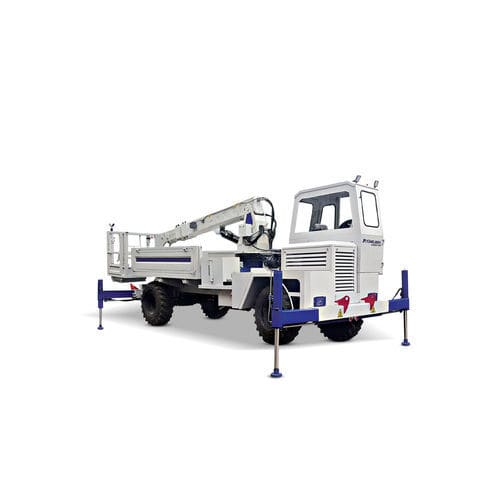

Adroit 520W is a 4x4 basket platform engineered for operations in confined and rugged underground environments such as mines, metro tunnels, highway and railway tunnels. It is designed to support ventilation, electromechanical installation, grouting and controlled charging tasks.

Key features

• 4x4 basket platform with Powershift 4WD drive
• Basket capacity (boom closed): 1000 kg + 2 persons
• Basket lifting capacity (boom fully opened): 300 kg + 2 persons
• Reach height (boom fully opened): 11 m; max. lifting height (basket floor): 9 m
• Deutz 74.5 kW diesel engine
• Vehicle haulage carrying capacity: 2 tons
• Audible and visual warning system for safe operation
• Suspended operator seat for improved comfort on uneven ground

Applications

• Underground mines
• Metro tunnels
• Highway and railway tunnels
• Tunnel face and ceiling works
• Ventilation and electromechanical installations
• Grouting and dynamite charging

Technical specifications

• Model: Adroit 520W
• Platform type: 4x4 basket platform
• Engine: Deutz 74.5 kW diesel
• Drive system: 4WD, Powershift
• Basket capacity (boom closed): 1000 kg + 2 persons
• Basket lifting capacity (boom fully opened): 300 kg + 2 persons
• Max. lifting height (basket floor): 9 m
• Reach height (boom fully opened): 11 m
• Vehicle haulage capacity: 2 tons
• Safety systems: audible and visual warnings
• Operator comfort: suspended seat
