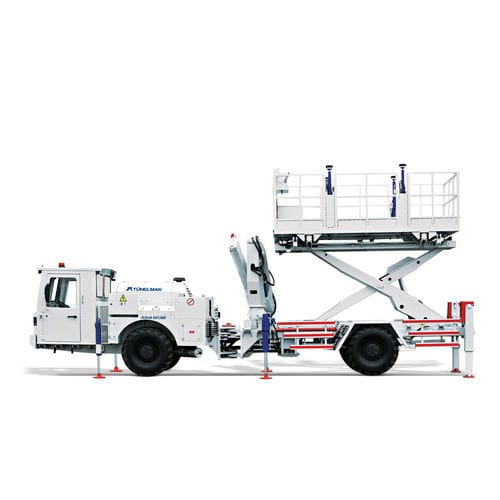

Underground mining utility vehicle Adroit 641AW

dieselall-terrain4-wheel drive

Product overview
The Adroit 641AW articulated scissor lift is a 4×4 lifting and loading machine engineered for operations in tunnels and mines. The platform measures 3.8 m × 2.15 m, offers a rated lifting capacity of 4500 kg and reaches up to 4 m above ground. Equipped with an articulated chassis, Deutz 129 kW diesel engine and Powershift drive system, it delivers reliable performance on difficult ground and high maneuverability.

Main features

• Platform size: 3.8 m × 2.15 m
• 4500 kg lifting capacity
• Max. lifting height: 4 m
• Knuckle boom crane
• Deutz diesel engine, 129 kW
• Powershift drive system

Applications

• Ceiling reinforcement in tunnels and mines
• Explosives placing
• Installation of pipelines and cable ducts
• Ventilation installation works

Technical specifications

• Type: 4×4 articulated scissor lift
• Platform dimensions: 3.8 m × 2.15 m
• Platform bearing / lifting capacity: 4500 kg
• Maximum lifting height: 4 m (from ground surface)
• Crane: Knuckle boom crane
• Engine: Deutz diesel, 129 kW
• Drive system: Powershift drive system
• Chassis: Articulated chassis for difficult ground conditions
• Primary use: Lifting and loading operations in tunnels and mines
