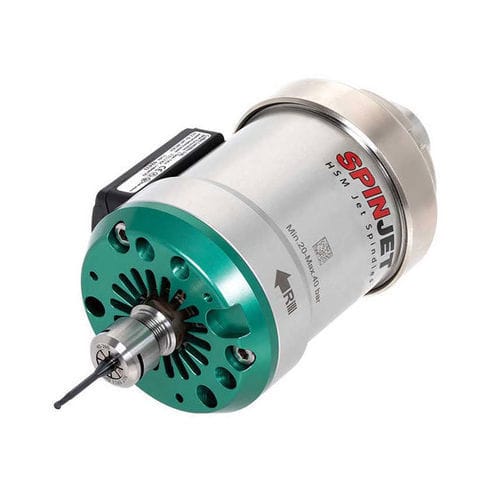

Milling spindle SpinJet

machiningcuttingspindle

Product overview

• Coolant-driven high speed compact spindle.
• Productivity quadruples due to spindles that rotate at high speed with coolant pressure.

Key phrase

• Coolant-driven high speed compact spindle for high productivity with small diameter tools on limited RPM machines.
• SpinJet utilizes the machine tool’s existing coolant supply, driven by a high pressure pump to rotate a turbine at high speeds; strong coolant jet flow provides extended tool life and machining stability.

Features

• Coolant-driven HSM spindle: SpinJet uses the machine’s coolant supply as the energy source to spin a turbine and rotate cutting tools at extremely high speeds while the main machine spindle remains idle when SpinJet is mounted.
  • Provides high speed machining capability even on machines with limited spindle RPM.
• Energy saving: Tools rotate only with coolant pressure, so the machine spindle remains stationary during SpinJet operation. Note: main machine spindle should be stationary while SpinJet is mounted.
• Wireless RPM monitoring system: SpinJet is equipped with an online speed display system to monitor actual cutting tool rotation speed during machining.
• Strong coolant jet flow: Extended tool life and improved machining stability due to high-pressure coolant flow through the spindle.

Holders & Accessories

• SpinJet holders (example holder models indicated on product page).
• SpinJet accessories (adapters and accessory sets for various expansion/adaption types).

Practical examples
Example #1 — General Engineering
Part: Machine parts
Material: SUS303 / X10CrNiS18-9 (25 HRC)
Holder: TJSGJETST20
Endmill: TEB010A2-015/12C4M45 (ø1.0, z = 2)
Grade: AH750
Cutting conditions: Vc = 120 (m/min) | n = 45,600 (RPM) | fz = 0.016 (mm/t) | ap = 0.01 (mm) | ae = 1 (mm) | Application: Grooving | Coolant: Wet | Machine: Vertical M/C, BT30

Example #2 — Die and Mold Industry
Part: Electrode
Material: C1100
Holder: TJSGJETST20
Endmill: TEB010A2-015/12C4M45 (ø1.0, z = 2)
Grade: AH750
Cutting conditions: Vc = 95 (m/min) | n = 40,000 (RPM) | fz = 0.025 (mm/t) | ap = 0.04 (mm) | ae = 0.04 (mm) | Application: Profiling | Coolant: Wet | Machine: Vertical M/C, BT30

Example #3 — Medical Industry
Part: Medical equipment
Material: Titanium alloys
Holder: TJSGJETER32
Endmill: TEB010A2-015/12C4M45 (ø1.0, z = 2)
Grade: AH750
Cutting conditions: Vc = 80 (m/min) | n = 35,000 (RPM) | fz = 0.03 (mm/t) | ap = 0.03 (mm) | ae = 0.05 (mm) | Application: Profiling | Coolant: Wet | Machine: Vertical M/C, BT30

Standard cutting conditions (selected / representative entries)
Table columns: ISO | Workpiece material | Tool | Application | Tool diameter DC (mm) | Coolant pressure (MPa) | Spindle speed n (min-1) | Width of cut ae (mm) | Depth of cut ap (mm) | Feed per tooth fz (mm/t)
Example rows (representative):
P (Alloy steel 35 HRC) | Drill | Drilling | DC 0.5–4 | Coolant pressure examples 1.5 MPa | Spindle speeds 18,000–40,000 | fz examples 0.007–0.01
M (Stainless steel 180–250 HB) | Ball type endmill / Endmill | Profiling / Slotting | DC 1–4 | Coolant 1.5 MPa | Spindle speeds 18,000–40,000 | fz examples 0.015–0.015
N (Aluminium alloys 80–160 HB) | Drill / Endmill | Drilling / Slotting | DC 0.5–4 | Coolant 1.5–2 MPa | Spindle speeds 18,000–53,000 | fz examples 0.01–0.02
H (Tool steel SKD61 58 HRC) | Ball type endmill | Profiling | DC 1–4 | Coolant examples up to 2 MPa | Spindle speeds 35,000–53,000 | fz examples 0.005–0.01
Note: the product page provides an extensive matrix of standard cutting conditions by ISO material group (P, M, N, H) with detailed values per tool type, tool diameter, coolant pressure, spindle speed, width/depth of cut and feed per tooth.
