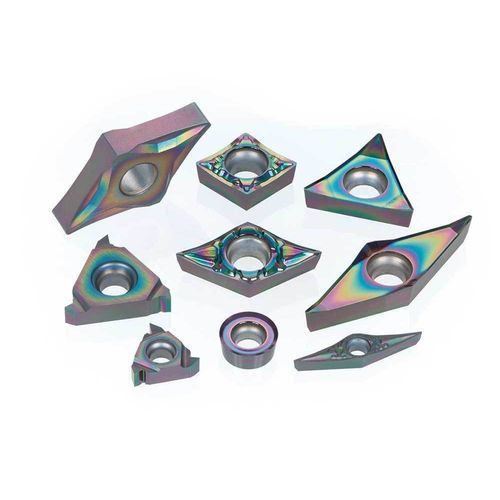

Metal turning insert DS2000

for aluminum alloys

Overview
New DLC coating grade designed for turning and threading of non‑ferrous alloys. Combines high coating hardness and heat resistance with superior adhesion to minimize built‑up edge and produce high‑quality glossy surfaces.

Applications

• External turning
• Internal turning
• External threading
• Internal threading

Features
DLC coated inserts

• Tungaloy original DLC coating grade optimized for aluminum alloys and other non‑ferrous materials
• High resistance to built‑up edge for improved surface finish
• High coating hardness and heat resistance to reduce abrasive and thermal wear
• Advanced coating adhesion technology ensures stable, repeatable machining

Performance Highlights

• Exceptional resistance to built‑up edge and excellent surface quality
• Superior wear resistance from a hard, heat‑resistant DLC layer
• Consistent machining stability due to strong coating adhesion

Grades

• DS2005 — Excellent wear resistance; long, stable life in high‑speed machining of non‑ferrous metals
• DS2015 — Balanced wear and chipping resistance for a wide range of turning/threading applications
• DS2025 — High fracture resistance for stable finishes in interrupted cuts of non‑ferrous materials

Practical examples
Example #1
Workpiece type: Vacuum pump part
Workpiece material: A6061 / AlMg1SiCu
Insert: CNGG120404-28
Grade: DS2005
Cutting conditions: Vc = 330 (m/min), f = 0.35 (mm/rev), ap = 0.2 (mm), Coolant: Wet

Example #2
Workpiece type: Machine part
Workpiece material: C1011 / Copper
Insert: CNGG120408-28
Grade: DS2005
Cutting conditions: Vc = 270 (m/min), f = 0.15 (mm/rev), ap = 1 (mm), Coolant: Wet

Example #3
Workpiece type: Shaft
Workpiece material: A5052 / AlMg2.5
Insert: 16IRA60
Grade: DS2015
Cutting conditions: Vc = 150 (m/min), Pitch = 1, Coolant: Wet

Standard cutting conditions (summary)
ISO | Workpiece materials | Grade | Cutting speed Vc (m/min) | Feed f (mm/rev) | Depth of cut ap (mm)
Aluminum alloys (Si ≤ 12%) | DS2005 | 100 – 1200 | 0.02 – 0.1 | 0.05 – 2.5
Aluminum alloys (Si ≥ 12%) | DS2005 / DS2025 | 100 – 300 | 0.02 – 0.2 | 0.05 – 3
Copper and copper alloys | DS2005 / DS2025 | 100 – 300 | 0.02 – 0.2 | 0.05 – 3
Non‑ferrous metals (general) | DS2015 | 100 – 500 | Varies | Varies

Notes
Primarily intended for aluminum and other non‑ferrous metals. Select suitable chipbreakers and insert geometries according to workpiece material and machining type.

Technical specifications

• Brand: Tungaloy
• Commercial name: DS2000 series
• Coating type: DLC (diamond‑like carbon)
• Target materials: Aluminum alloys and other non‑ferrous metals (including copper alloys)
• Main applications: external turning, internal turning, external threading, internal threading
• Key benefits: high resistance to built‑up edge, excellent surface quality, high coating hardness, heat resistance, superior coating adhesion
• Available grades: DS2005, DS2015, DS2025
• Representative recommended cutting speeds: DS2005 up to ~100–1200 m/min (material and conditions dependent); DS2015 typically 100–500 m/min; DS2025 suitable for certain materials up to ~1000 m/min
• Example inserts referenced: CNGG120404-28, CNGG120408-28, 16IRA60
• Typical coolant condition in examples: Wet
