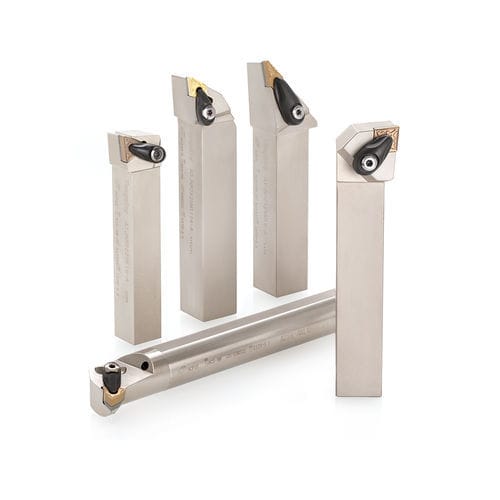

External turning tool holder TurningA

for internal turninghigh-rigidityhigh-accuracy

Overview
Highly rigid "Double‑Clamp" system provides remarkable stability and high accuracy.

Applications

• Internal turning
• External turning

Features

• Simple and strong double‑clamp system: Provides strong clamping force with one screw. One screw and one action delivers double clamping force by simultaneously pushing down and pulling, providing high stability for the cutting edge.
• Higher indexing accuracy
• Unique clamp improves rigidity: Larger holding area enhances clamping force drastically. Higher rigidity provides excellent stability and reduces vibration.

Inserts

• Inserts for External Turning
• Inserts for Internal Turning
• ISO‑EcoTurn Inserts: Economical small size insert

Main Grades

• T9215: P10 – P20; Well‑balanced between wear and chipping resistance; First choice for steel; High versatility for a wide range of applications
• T6130: P15 – P30 / M15 – M30; High wear resistance in cutting at medium to high speed; First choice for stainless steel
• T515: K10 – K20; Stable machining in a wide range of applications from continuous to interrupted cutting

Toolholders
TurningA toolholders: Highly rigid "Double‑Clamp" system for external and internal turning holders.

Practical examples
Example #1 — Automotive Industry
Part: Shaft parts
Material: SCM440 (42CrMo4)
Toolholder: ACLNR2525M12-A
Insert: CNMG120408-TM
Grade: T9215
Cutting conditions: Vc = 250 m/min | f = 0.3 mm/rev | ap = 3.5 mm
Application: External profiling (Continuous) | Coolant: Wet

Example #2 — Automotive Industry
Part: Hub (Automotive parts)
Material: SCM420 (Alloy Steel)
Toolholder: AWLNR2525M08-A
Insert: WNMG080412-TM
Grade: T9225
Cutting conditions: Vc = 220 m/min | f = 0.3 mm/rev | ap = 1.0 mm
Application: Face & Profiling (Continuous & Interrupted) | Coolant: Wet

Documents
Main product report: No. 365 (metric and imperial product reports available).

Technical specifications

• Product name: TurningA
• Clamping system: Double‑Clamp with single‑screw actuation (push down and pull simultaneously)
• Main applications: Internal and external turning
• Primary benefits: High rigidity, high accuracy, improved vibration suppression
• Recommended grades: T9215, T6130, T515 (application‑specific recommendations for steel, stainless steel and cast/K‑materials)
• Typical toolholder examples: ACLNR2525M12-A (external), AWLNR2525M08-A (external/internal examples shown)
• Example cutting speeds/feeds provided for automotive shaft and hub applications (see practical examples)
• Associated product report number: 365
