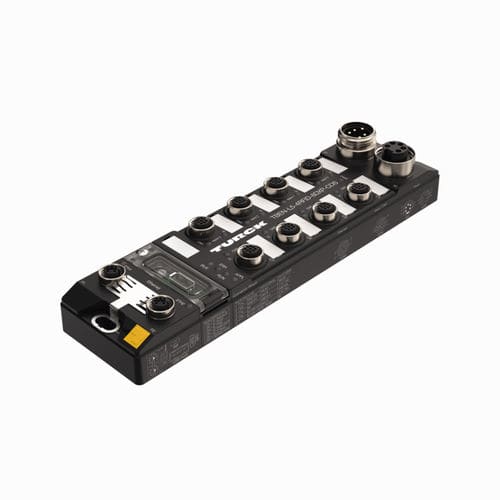

Compact RFID module TBEN-L5-4RFID-8DXP-CDS

Compact Multiprotocol RFID Module for Ethernet Compact RFID and I/O module programmable via CODESYS V3 CODESYS V3 PLC Runtime CODESYS OPC-UA server PROFINET device, EtherNet/IP device or Modbus TCP master/slave Integrated Ethernet switch Supports 10 Mbps/100 Mbps Glass fiber reinforced housing Shock and vibration tested Fully potted module electronics Protection classes IP65, IP67, IP69K ATEX Zone 2/22 Integration in PLC systems without the use of a special function module Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each Data interface for convenient use of the RFID functions 4 channels with M12 connection for RFID 8 universal digital channels, configurable as PNP inputs or 2 A outputs Country of origin - DE Weight - 643 g Technical Data Network protocol - Modbus TCP, EtherNet/IP, PROFINET Signal type - RFID, Digital input, Digital input/output, Digital output Connection technology signal - M12 Device type - I/O Module, Compact station Transmission rate Ethernet - 10/100 Mbps Connection technology Ethernet - 2 x M12, 4-pin, D-coded Ambient temperature - -40…+70 °C
