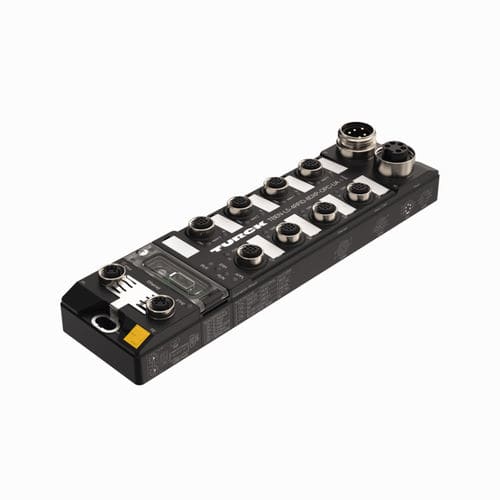

Compact RFID module TBEN-L5-4RFID-8DXP-OPC-UA

Compact RFID Module for OPC-UA 4 RFID Channels in Accordance with AutoID Companion Specification and 8 Universal Digital Channels, Configurable as PNP Inputs or 2-A Outputs Integrated OPC UA server standardized in accordance with AutoID Companion Specification V. 1.01 Calling of data via OPC UA clients Glass fiber reinforced housing Shock and vibration tested Fully potted module electronics Protection classes IP65, IP67, IP69K ATEX Zone 2/22 Universal interface offers interoperability Supports security mechanisms and authentication Continuous reading of EPC, UID or USER data HF bus mode with up to 32 HF read/write heads per channel 4 channels with M12 connection for RFID 8 universal digital channels, configurable as PNP inputs or 2 A outputs Country of origin - DE Weight - 645 g Technical Data Network protocol - OPC UA Signal type - RFID, Digital input, Digital input/output, Digital output Connection technology signal - M12 Device type - I/O Module, Compact station Transmission rate Ethernet - 10/100 Mbps Connection technology Ethernet - 2 x M12, 4-pin, D-coded Ambient temperature - -40…+70 °C
