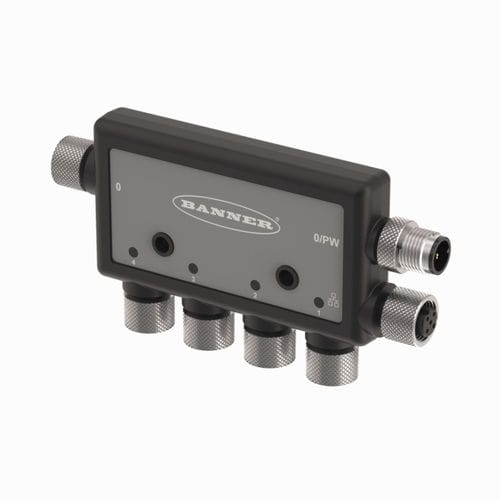

Compact network controller DXMR90-X1

4 ports

Protection class IP67 Flat, compact housing Configurable LEDs Logic functions, supports ScriptBasic Supports MQTT, TLS, SSL, HTTPS Email and cloud function, timing and data logger Can be configured via DXM Configuration Software Operating voltage: 12…30 VDC In-line RS485 connection, supports Modbus RTU Four independent RS485 interfaces via four 4-pin M12 × 1 female connectors for Modbus RTU master functionality Ethernet interface: M12 × 1 female connector, 4-pin, D-coded Supports EtherNet/IP, Modbus TCP and PROFINET Country of origin - US Weight - 352 g Technical Data Device type - Network controller Design - Rectangular Antenna connection - No radio participant runs with battery - nein Protection class - IP67 Communication protocol - RS485, Modbus RTU, EtherNet/IP, Modbus TCP, PROFINET Input type - - Output type - - Electrical connection - Connector, M12 × 1 Housing material - Plastic, PC, Grey Ambient temperature - -40…+70 °C
