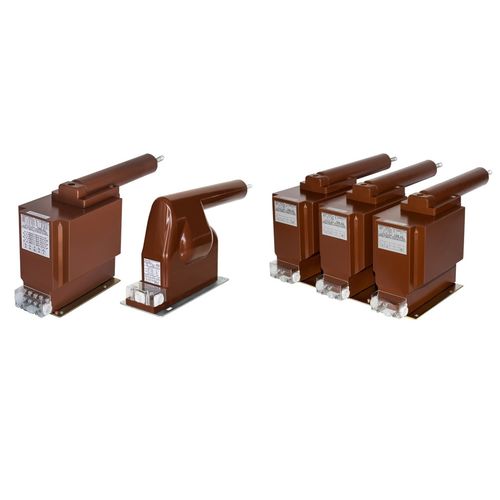

Instrument transformer VIE-X seriescast resinfor indoor servicemedium-voltage
Add to favorites
Compare this product
Characteristics
- Type
- instrument
- Configuration
- cast resin
- Applications
- for indoor service
- Electrical characteristics
- medium-voltage
- Primary voltage
Max.: 30,000 V
Min.: 3,000 V
- Secondary voltage
100 V, 110 V
Description
Highest voltage for equipmet [kV) 24
Rated insulation level (kV) 24/50/125
Rated pnmary voltage (V) from 3000/^3 up to 20000/^3
Rated secondary voltage (V) 100/V3 or 110/V3
Secondary tap upon request
Accuracy class 0.2:0.5: 1:3
Rated burden of measuring winding (VA) 15 up to 120
Rated voltage of open delta winding (V) 100/3 or 110/3
Accuracy class 3P:6P
Rated burden of open delta winding (VA) 15up to 100
Continuous thermal current of secondary winding (A) 6
Continuous thermal current of tertiary winding (A) 8
Rated voltage factor and permissible duration 1.9 x Un / 8h
Class of insulation E
Rated frequency (Hz) 16 2/3:50 : 60
Weight (kg) 29 90
Cantilever strength (N) >5000
Maximum altitude of installation (m) up to 1000
Ambient temperature (:Q -5upto + 50
Specifications IEC 61869-1 & 3: ANSI: BSetc.
Drawing Nr 2224/12-2224/22 2224-32
