Gas expansion thermostat 23

mechanical

DESCRIPTION

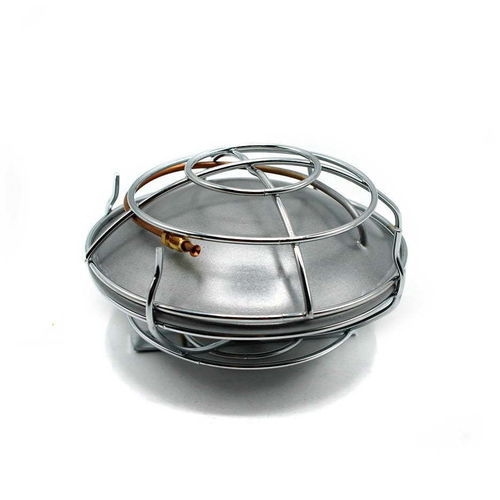

The air expansion thermostat 23 is a purely mechanical device designed to detect ignition and the rapid temperature rise that can precede a fire. Its thermal‑sensitive element deforms under heat, compressing the internal air chamber to generate a pneumatic signal that actuates pilot cylinders and downstream pneumatic actuators. The unit is supplied/compatible with a protective cage for installation in exposed locations.

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Product code / SKU: 23
• Commercial designation / model: 23
• Purpose: Detection of ignition and sudden temperature increases preceding fire
• Operation: Purely mechanical, air‑expansion based actuation (no electrical supply required)
• Working principle: Thermal‑sensitive material deforms under heat, compressing internal air to activate pneumatic actuators and pilot cylinders
• Accessory: Supplied/compatible with protective cage (referenced in product title)
• Datasheet: Available on product page (1 file, approx. 908.46 KB)

INSTALLATION & COMPATIBILITY

• Integrates with pneumatic pilot cylinders and pneumatic control systems
• Recommended use with protective cage in exposed or high‑traffic locations
• No electrical connection required; suitable for systems relying on pneumatic actuation
