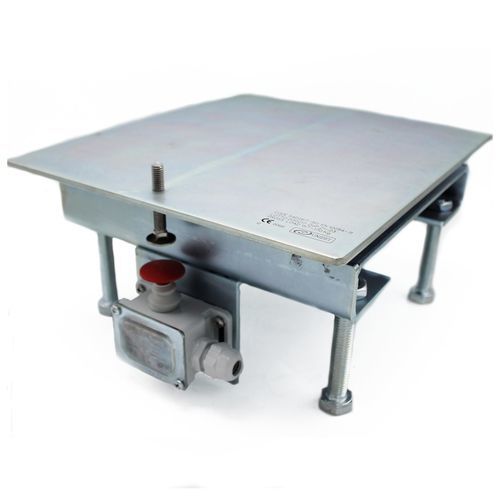

Cylinder limit switch 54D267-80

IP65

Description
The weight control system limit switch is installed under each cylinder of a firefighting system (for safe areas). It is designed for cylinders with a total weight between 157 and 170 kg and detects the cylinder's state of charge. When the extinguishing agent loss reaches approximately 5% of a single cylinder's content, the switch issues an electrical signal to alert supervising personnel.

Compliance
In accordance with EN 12094-11:2006

Datasheet
DATASHEET 54D267-80-AT.C (1 file, 1,010.47 KB)

Technical specifications

• SKU: 54D267-80
• Product type: Weight control system limit switch
• Cylinder total weight range: for cylinders from 157 to 170 kg
• Switch type: limit switch, 2NC (two normally closed)
• Protection degree: IP65
• Mounting: plate 270 x 300 x 5 mm
• Function: positioned under each cylinder to detect state of charge and issue an electrical signal on loss of extinguishing agent (alert at approximately 5% loss of single cylinder content)
• Intended area: for safe area installation
• Standards: compliant with EN 12094-11:2006
