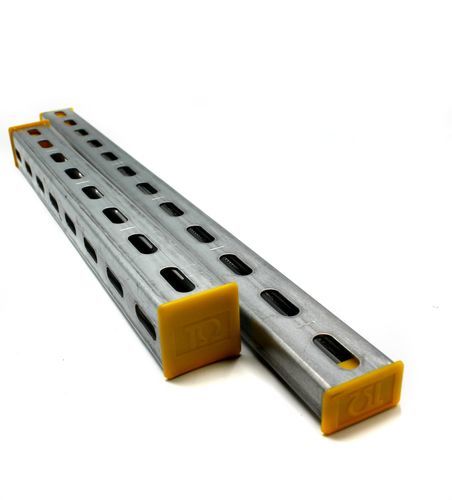

Galvanised steel construction profile PROF.squareindustrialmounting
Add to favorites
Compare this product
Characteristics
- Material
- galvanised steel
- Configuration
- square
- Applications
- industrial, mounting
- Width
41 mm
(1.614 in)- Height
41 mm
(1.614 in)- Length
3,000 mm
(118.11 in)- Thickness
2.5 mm
(0.1 in)
Description
Description
Eyelet profile PROF. 41x41x2.5 mm in galvanized steel. Designed as a fixing profile to secure in-line battery of cylinders. The profile can be mounted on fixed walls and bulkheads to form a solid anchor point; tie rods are positioned between cylinders during installation and system assembly.
Applications
Documents
Datasheet PROF. — 1 file(s) — 898.78 KB
Characteristics / technical specifications
Eyelet profile PROF. 41x41x2.5 mm in galvanized steel. Designed as a fixing profile to secure in-line battery of cylinders. The profile can be mounted on fixed walls and bulkheads to form a solid anchor point; tie rods are positioned between cylinders during installation and system assembly.
Applications
- Fixing system for battery of cylinders in line
- Mounting on fixed walls and bulkheads
- Use in industrial pneumatic/hydraulic installations and assembly lines
Documents
Datasheet PROF. — 1 file(s) — 898.78 KB
Characteristics / technical specifications
- Material: galvanized steel
- Profile section: 41 x 41 mm
- Thickness: 2.5 mm
- Length: 3 m
- SKU / Model code: PROF.
- Application: fixing system for battery of cylinders in line
- Mounting: can be located on fixed walls and bulkheads to form a solid anchor point
