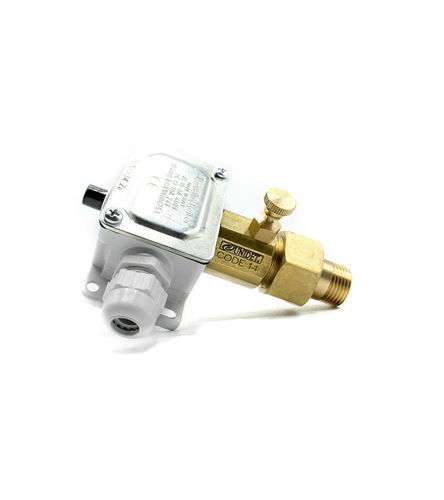

Piston pressure switch M 10A IP65

SPDTNONC

Datasheet
DATASHEET 14 — 1 file(s), 858.46 KB available.

Description
Industrial pressure switch model 14 with a single change-over contact (1 NO + 1 NC). Designed and tested in-house for installation directly on the main manifold and on system distribution lines to detect flow/pressure and confirm distribution start. The piston-actuated mechanism translates pressure changes into an electrical signal sent to a centralized control panel, and is suitable for manifold distribution systems compliant with NFPA12.

Technical characteristics / specifications

• Contact configuration: 1 NO + 1 NC (change-over)
• Electrical rating: 10 A
• Protection rating: IP65
• Connection: ½” BSP M
• Intended installation: directly on main manifold and on system distribution lines
• Function: piston-actuated switching to detect flow/pressure and send electric signal to centralized control panel confirming pressure/start of distribution
• Application note: designed for manifold distribution according to NFPA12 to protect one or more rooms
• Manufacture/test: realized and tested in-house
• SKU: 14
• Datasheet: DATASHEET 14 (1 file, 858.46 KB)
