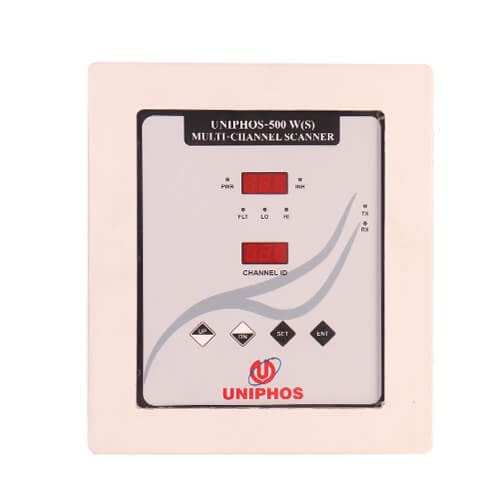

Gas monitoring unit Uniphos 500 WS

for shipsfor the chemical industryfor the pharmaceutical industry

Product Overview The Uniphos 500 WS eight-channel gas scanner monitors up to eight gas transmitters and provides sequential, hi-visibility readings on a 3-digit 7-segment LED display. Two programmable alarm set points per channel and three common relay contacts for fault, warning and alarm conditions allow flexible control and integration with plant systems.

Application

• Refineries
• Petrochemical plants
• Pharmaceutical plants
• Power generation and utilities
• Marine installations
• Chemical plants

Features

• Microprocessor-based system for reliable monitoring
• Hi-viz 3-digit 7-segment LED display sequentially shows gas levels for all 8 channels
• Three common relays (Fault, Warn & Alarm) covering all channels
• Two settable alarm set points per channel for configurable thresholds

Technical specifications

• Display: 3-digit 7-segment LED display
• No. of channels: 8
• Input signal: Industrial standard 4-20 mA analog signal
• Alarms: 3 potential-free relays for LOW, HIGH & FLT alarm
• Input power: 110-230 V AC ±10 %, 50/60 Hz
• Output power: 24 VDC (for transmitters only)
• Function keys: UP, DOWN, SET & ENTER keys
• Operating temperature: 0 to 50 °C
• Pressure: Ambient ±10 %
• Enclosure: FRP / FLP
• Weight: FRP: approx. 6 kg; FLP: approx. 17 kg
• Dimensions: FRP: L=300 mm, W=175 mm, D=350 mm; FLP: L=245 mm, W=200 mm, D=425 mm
