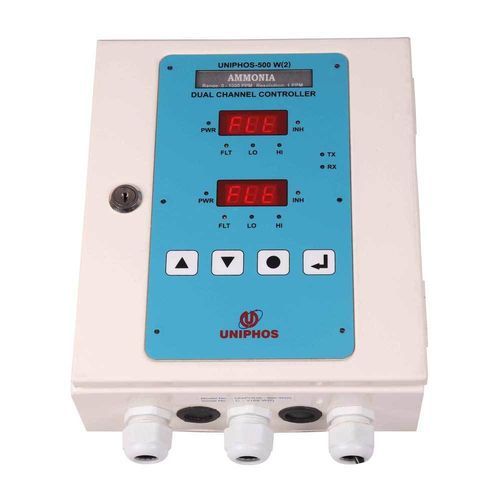

Marine engine gas control unit 500 W2

Product overview
The 500 W2 Dual Channel Controller accepts industrial standard 4-20 mA analog signals from one or two gas transmitters to provide centralized monitoring of gas concentration at one or two locations. A hi-viz LED display gives clear readings even from a distance or in low light. Two user-settable alarm set points per channel and three relay contacts per alarm condition offer multiple connection options. An RS-485 port provides easy data transfer to a PC (GUI optional).

Application

• Refineries
• Petrochemical Plants
• Pharmaceutical Plants
• Power Industries
• Marine Industries
• Chemical Plants

Features

• Two user-programmable alarm set points per channel
• Three relay contacts per channel
• Microprocessor-based system with inbuilt self-test facility
• Hi-viz LED display (3-digit 7-segment per channel)
• Compatible with 4-20 mA inputs from 2-wire and 3-wire gas transmitters
• Data connectivity option to PC (GUI optional)

Technical specifications

• Display: 3-digit 7-segment LED display per channel
• No. of Channels: 2
• Input Signal: Industrial standard 4-20 mA analog signal
• Output Signal: 4-20 mA loop-back signal
• Alarms: 3 potential-free relays per channel for Low, High and Fault alarm conditions
• Data Connectivity: RS-485 interface; data connectivity option to PC (GUI optional)
• Input Power: 110 - 230 V AC ±10%, 50/60 Hz
• Output Power: 24 V DC (for transmitters only)
• Operating Temperature: 0 to 50 °C
• Pressure: Ambient ±10%
• Enclosure options: FRP / FLP / Metallic
• Weight: FRP: approx. 6 kg; FLP: approx. 17 kg; Metallic: approx. 4.5 kg
• Dimensions (L x W x D): FRP: 300 mm x 175 mm x 350 mm
  FLP: 245 mm x 200 mm x 425 mm
  Metallic: 250 mm x 120 mm x 300 mm
