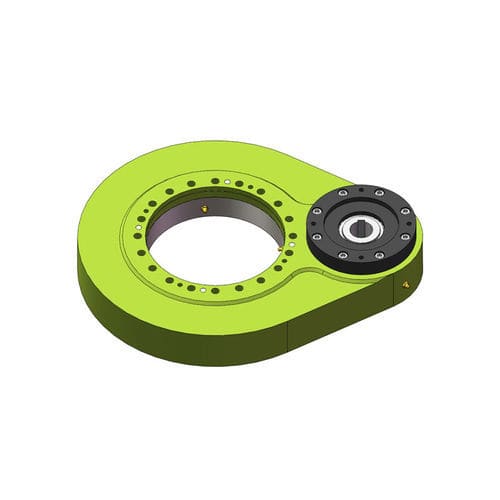

Slewing drive S-II-O-0311

Slewing drive - S-II-O-0311 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-0311 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-0311 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 6,591 Nm
(4,861.272126 ft.lb)

Max.: 8,794 Nm
(6,486.121541 ft.lb)

Gear ratio

4.6 unit

Description

Module - M - mm - 6 Teeth number of wheel - Z2 - － - 69 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 212 Axial static load - Co ax - KN - 568 Radial dynamic load - Crad - KN - 175 Axial dynamic load - Cax - KN - 204 Weight - W - Kg - 88.2
