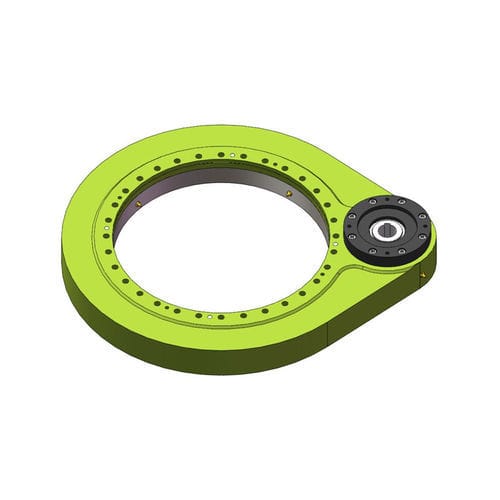

Slewing drive S-II-O-0541

Slewing drive - S-II-O-0541 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-0541 - Unique Transmission Equipment(Luoyang)Co., LTD
Slewing drive - S-II-O-0541 - Unique Transmission Equipment(Luoyang)Co., LTD - image - 2
Add to favorites
Compare this product

Characteristics

Torque

Min.: 10,570 Nm
(7,796.031918 ft.lb)

Max.: 13,783 Nm
(10,165.819103 ft.lb)

Gear ratio

7 unit

Description

Module - M - mm - 6 Teeth number of wheel - Z2 - － - 105 Teeth number of pinion - Z1 - － - 15 Radial static load - Co rad - KN - 369 Axial static load - Co ax - KN - 989 Radial dynamic load - Crad - KN - 216 Axial dynamic load - Cax - KN - 253 Weight - W - Kg - 124.5
